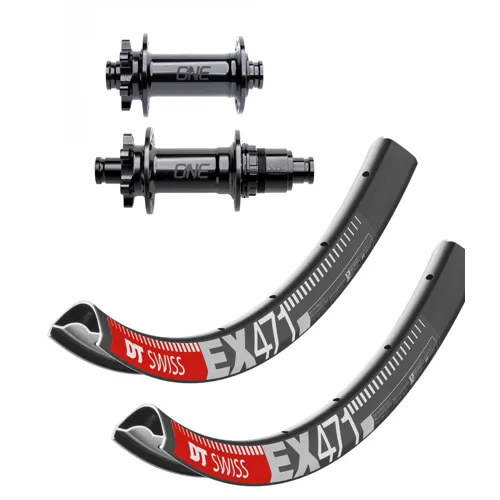

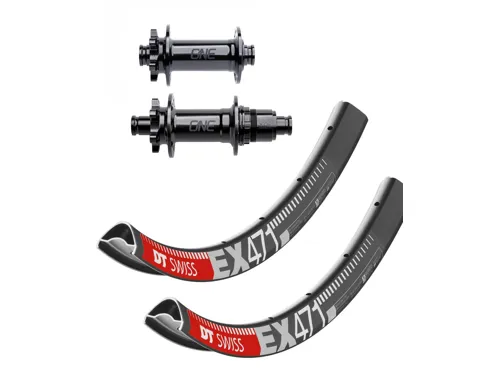

The OneUp hubs are the new benchmark for a no-nonsense hubset. Currently only available in standard boost hub spacing (15x110 & 12x148), full rim and hub specifications available below.Lightweight, durable, ratchet driven rear hub, with high-quality bearings and seals to give you the best combination of performance, durability and price.
Lightweight.
Our simple design has fewer parts, this reduces weight and improves reliability. The fully machined 7075 aluminum body is super light and strong.
Durable Design.Premium Enduro™ ABEC 5 cartridge bearings are spaced as wide as possible to reduce wear, reduce side-loading and increase bearing life.
Good Engagement.We chose to develop a 44T ratchet to strike the best balance between performance and value with improved reliability.

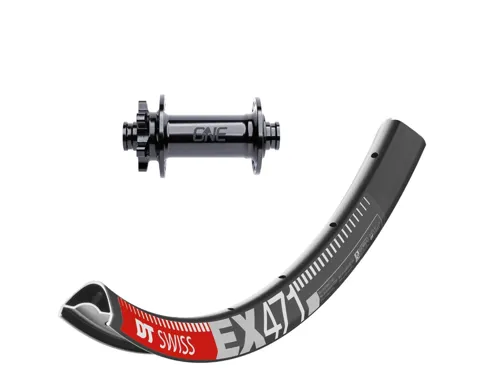

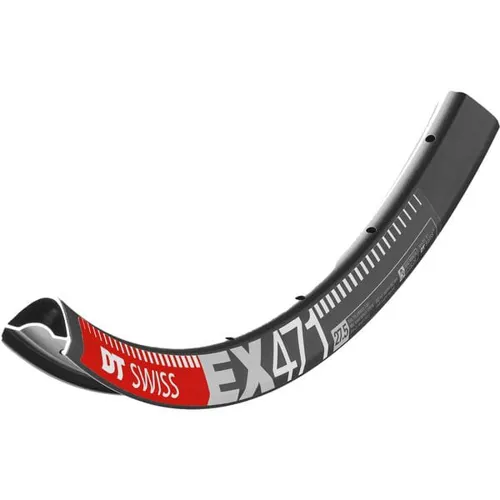

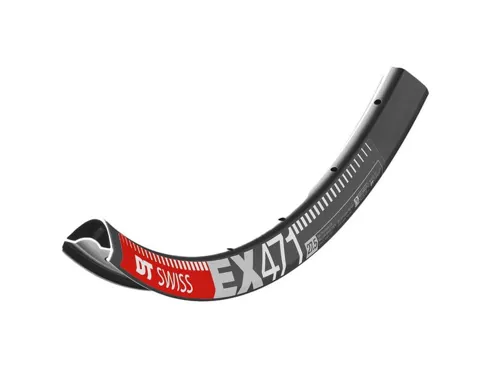

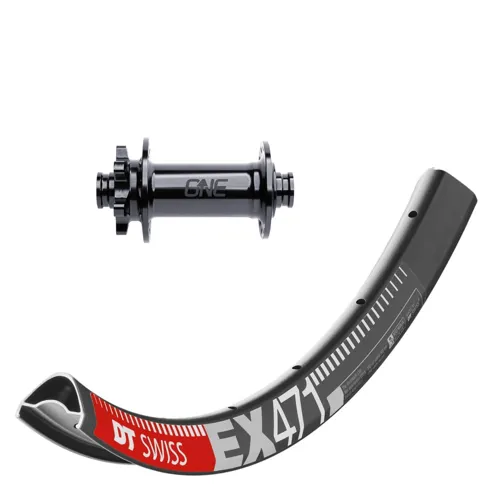

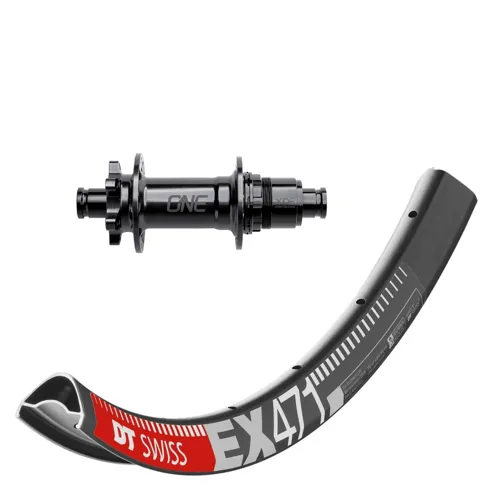

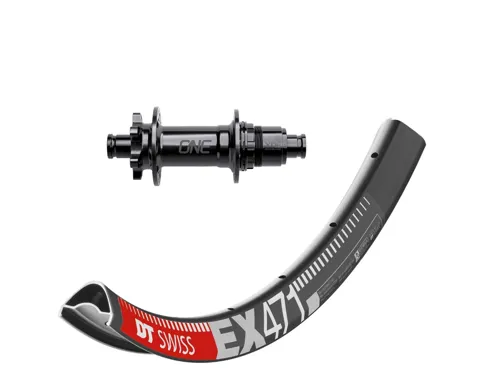

DT EX 471The rim Gwin couldn't kill! The EX 471 is a phenomenon for gravity focussed riding, seen on pros' bikes everywhere from the EWS, to DH World Cups, to the RedBull Rampage. Known for its light weight, reliability and value. If you don't mind a touch more weight, and tend to run slightly wider tyres, the EX511 may be worth considering.
Rims Details:- Available in both 28 and 32 hole count in 27.5 and 29 inch
- ERD 563 mm (27.5 inch) or 601 mm (29 inch)
- Outer width 30 mm Inner width 25 mm
- Height 21 mm
- Weight 500 g (27.5 inch) or 530 g (29 inch)

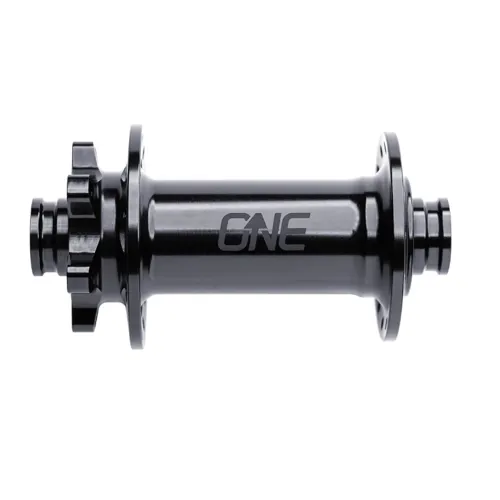

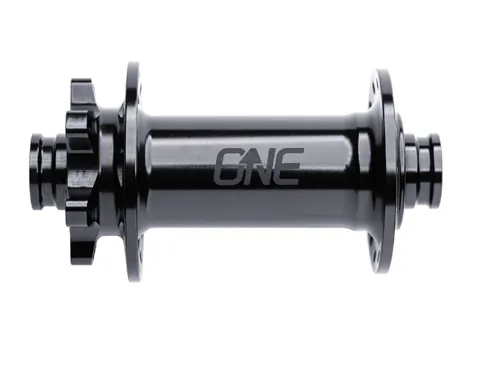

Front Hub Details:Hub Spacing: Boost (15mm x 110mm)
Hole Count: 28 and 32
Weight front: 142g
Colours: Black, red, green, blue, orange, purple, grey
Material: 7075 T6 Aluminum
Spokes: J-Bend
Hub Dimensions: PCD-L: 52, Flange Dist-L: 28, PCD-R: 48, Flange Dist-R: 40
End Caps: Tool free installation (Standard and Torque Caps included with Front Hub)
Bearings: Enduro™ MR17287 (front)
Grease: Dumonde™ Pro-X Grease

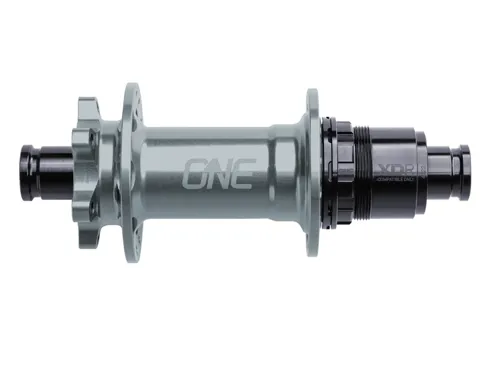

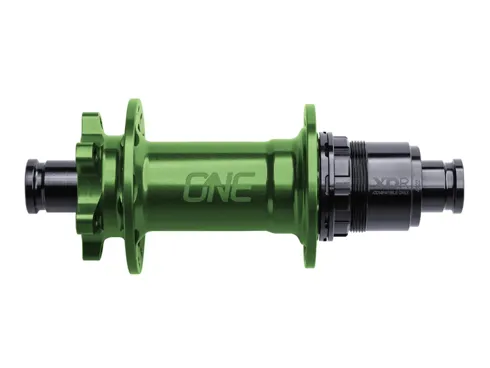

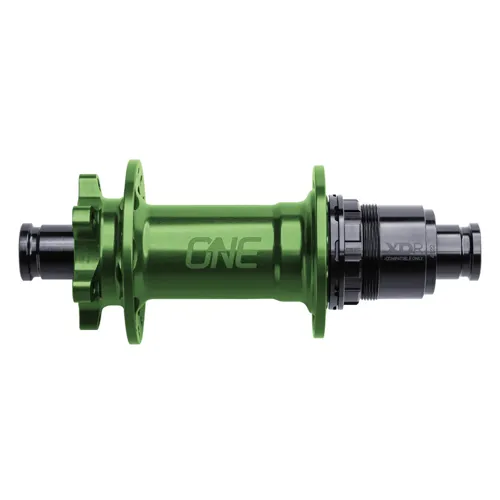

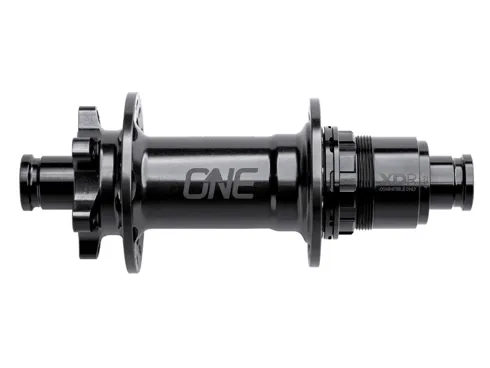

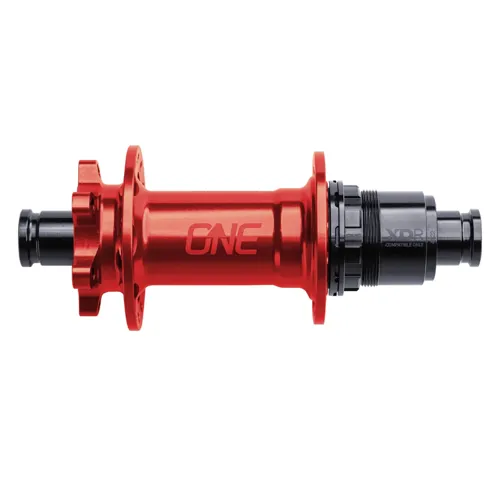

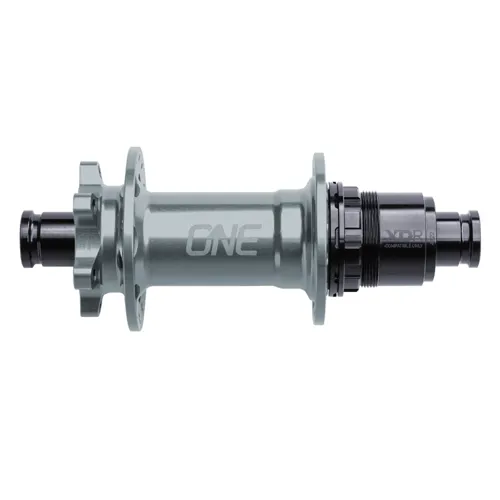

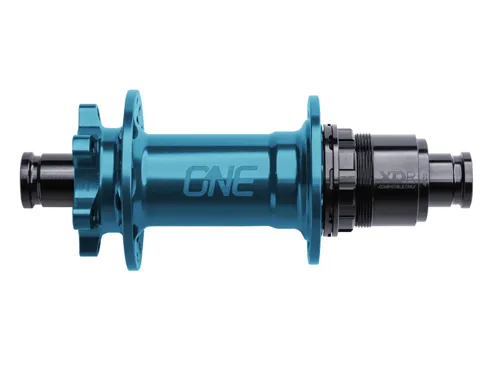

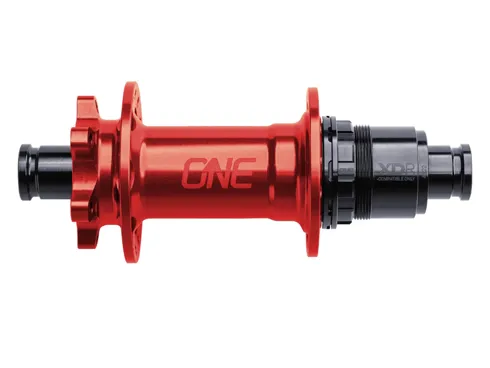

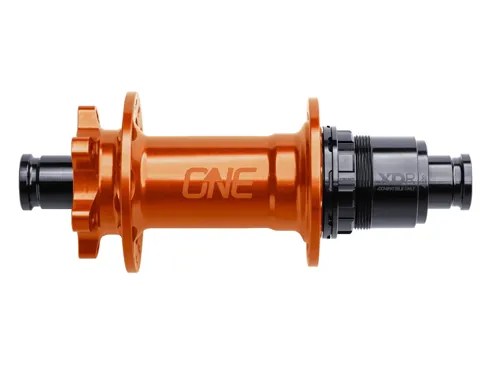

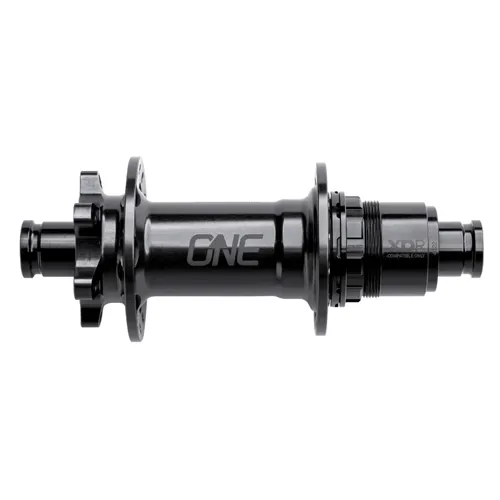

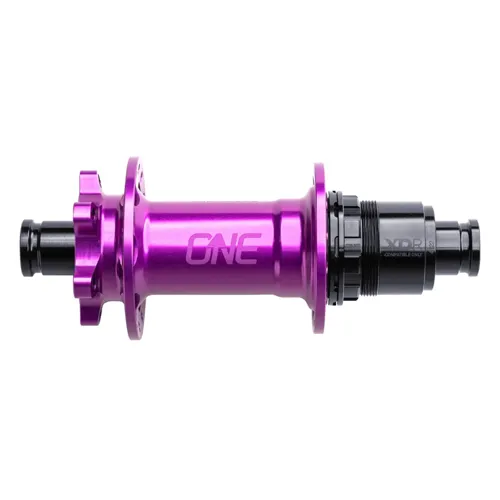

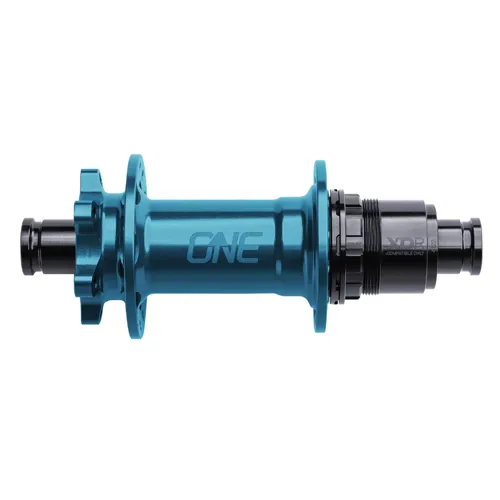

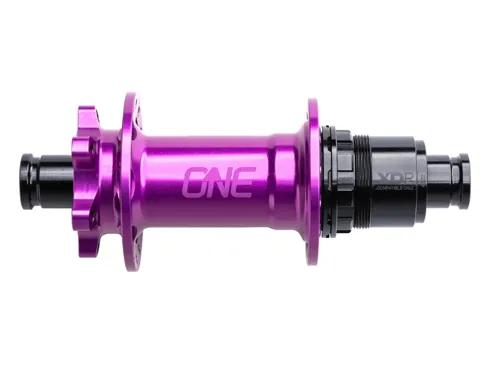

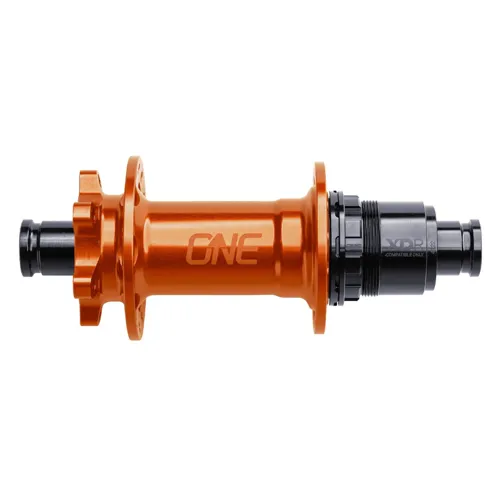

Rear Hub Details:Hub Spacing: Boost (12mm x 148mm)
Hole Count: 28 and 32
Engagement: 44 points, 8.2 degrees
Rear Hub Weight: 220g
Colours: Black, red, green, blue, orange, purple, grey
Material: 7075 T6 Aluminum

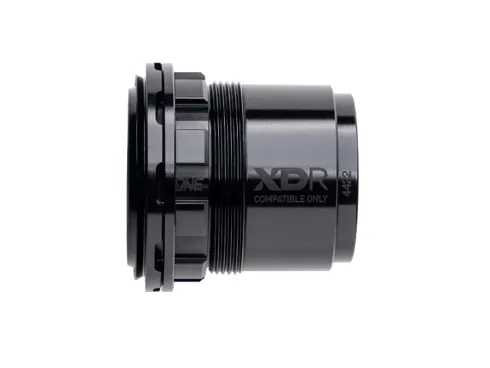

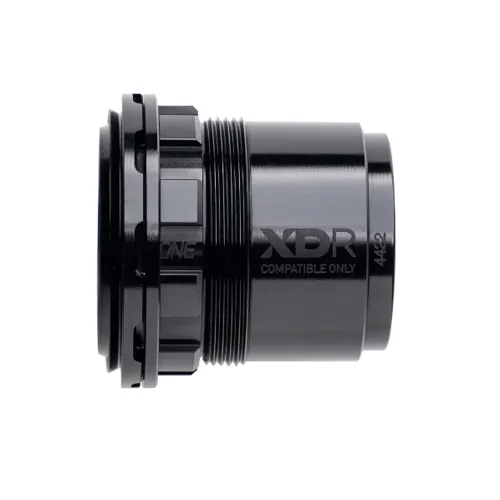

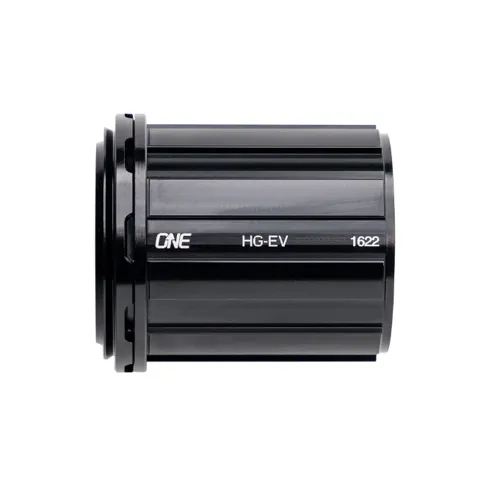

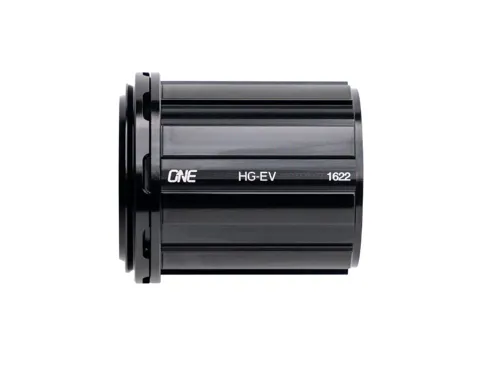

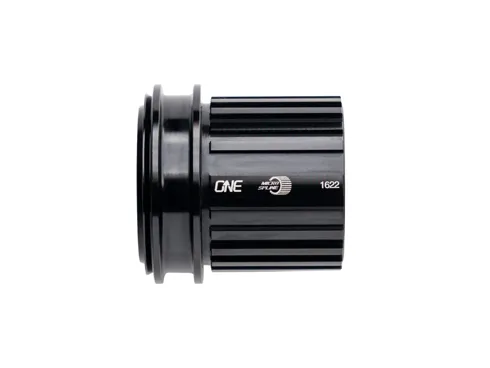

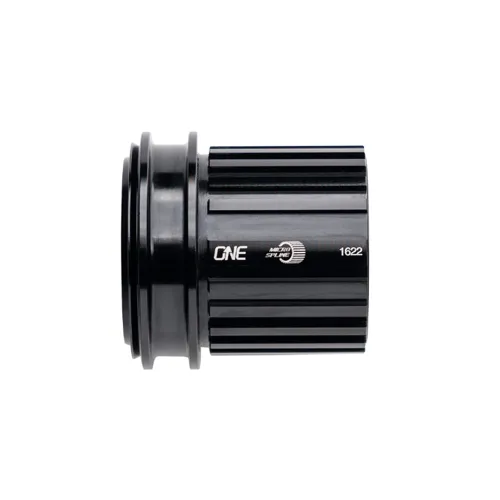

Freehub options: XDr, Microspline (MS), Hyperglide (HG)
Spokes: J-Bend
Rear Hub Dimensions: PCD-L: 52, Flange Dist-L: 38. PCD-R: 48, Flange Dist-R: 23
End Caps: Tool free installation
Bearings: Enduro™ 6902 (rear), Enduro™ 6802 (freehub)
Seal: Enduro™ Silicone Freewheel Seal
Grease: Dumonde™ Pro-X Grease (included with freehub)

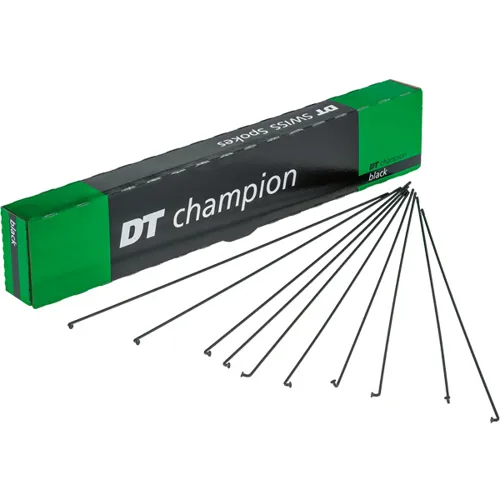

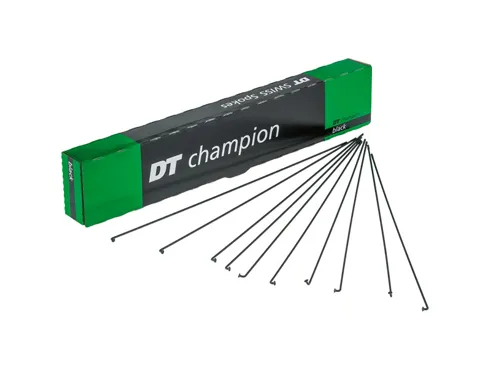

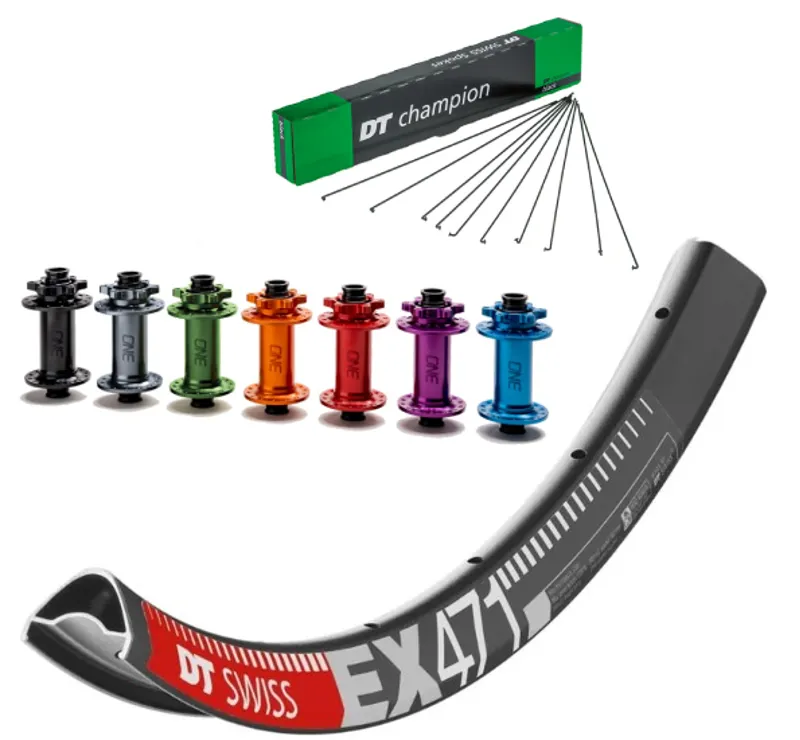

Wheels are built up using black plain gauge J-Bend spokes and Squorx nipples which combines ease of use, lightweight and optimum performance. If you would like to request alternatives feel free to contact us prior to placing your order.
We aim to have wheels built within a week provided your selected options are in stock. Feel free to shoot us a message or give us a call to confirm availability and turnaround.
This is a custom built product and therefore non-returnable.
