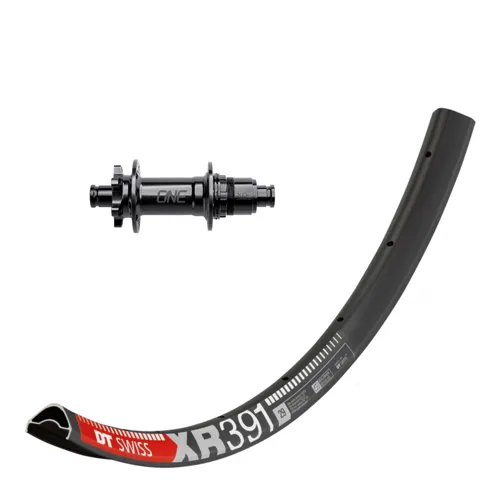

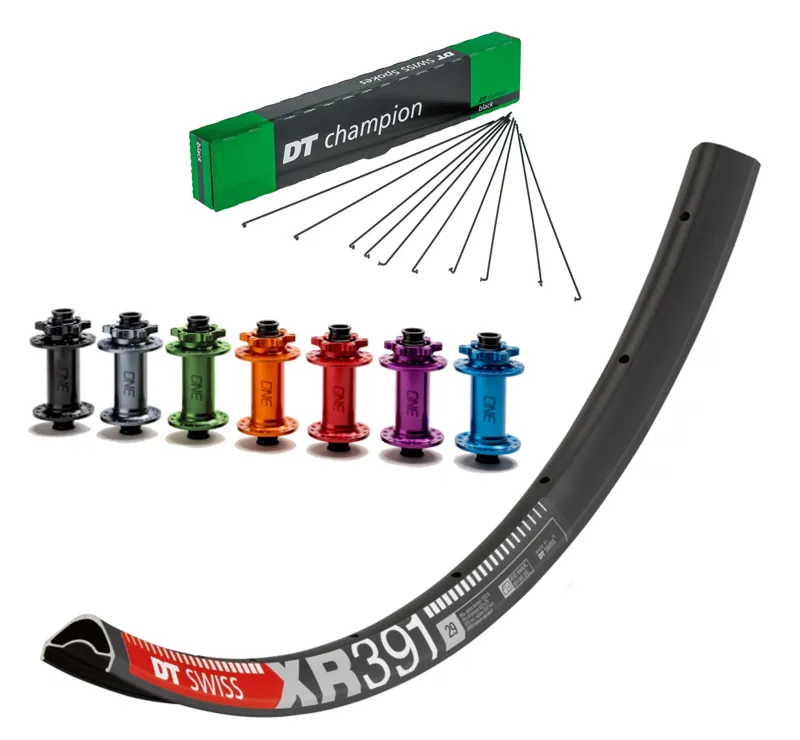

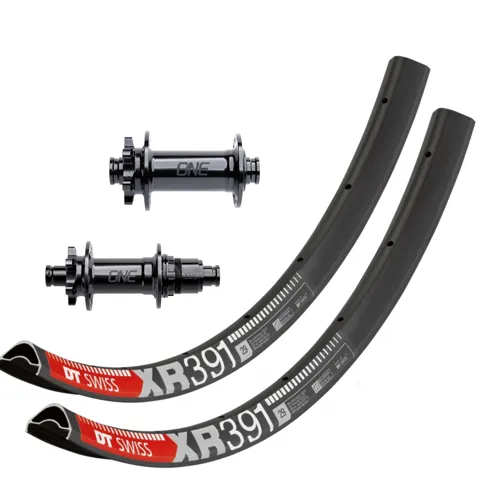

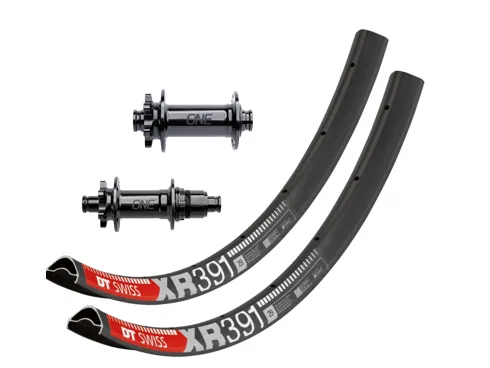

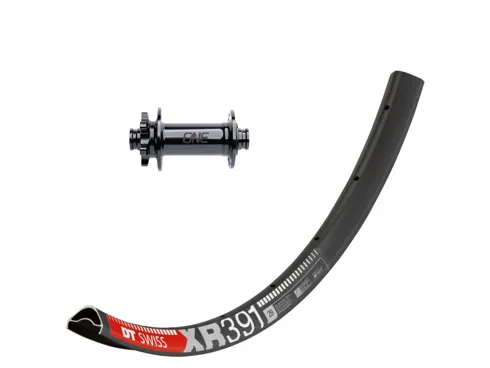

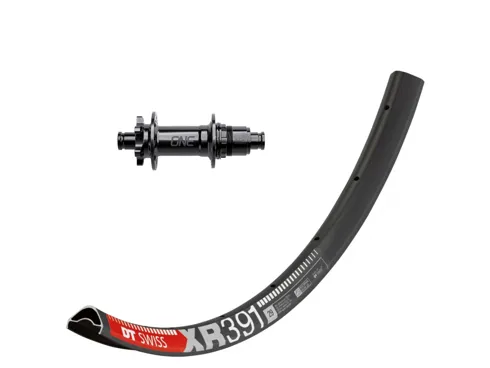

The DT XR 391 rims on OneUp hubs combo gives you a super lightweight and reliable XC wheelset without breaking the bank.

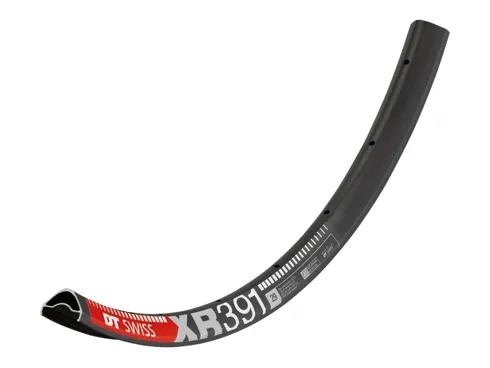

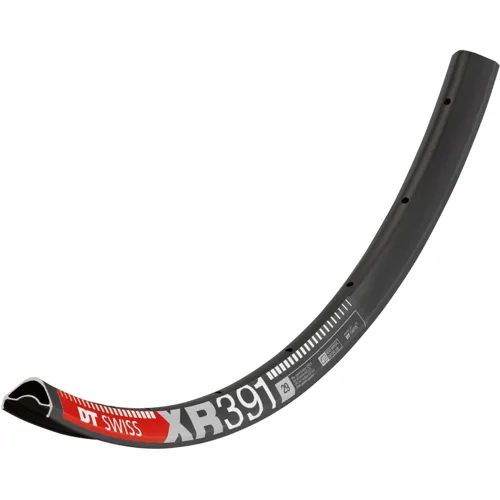

DT Swiss XR 391 RimsA super light XC race rim with a huge 25 mm internal diameter!
Wider doesn't just improve grip and comfort; it's faster, during extensive off season testing with Nino Schurter and Florian Vogel is was proven that matching wider XC race rubber to an optimum width rim was vital to reducing rolling resistance.
The highest profile result of this research project was the World Cup winning XRC 1200's. but with the XR 391 DT is bringing wide XC race rims to a whole new price point.
The rim bed is tubeless optimized to provide fast tyre installation, a great tyre fit and quick trouble-free tubeless setup, of course you also have the option to run standard inner tubes.
Whilst as wide as DH rims from a few years back, it should be noted that these are still very much race orientated rims with a maximum suggested system weight of 110 KG, heavier riders or those looking for more durability are advised to look at the XM or EX rim offerings.- Strength Boost Welding Technology creates a perfectly welded join for a durable, reliable rim.
- PHR washers and convex Squorx nipples (included) naturally align perfectly with your chosen spokes, increasing stiffness and durability with no weight penalty over traditional eyeleted rims.
- Available in 28 or 32 hole
- Rim Weight - 410 g (29 inch) including washers
- Disc brake specific
- ERD 607 mm (29 inch) including PHR washers
- Outer width 29 mm
- Height 18 mm
- Rim Inner Width 25mm
OneUp HubsThe OneUp hubs are the new benchmark for a no-nonsense hubset. Currently only available in 6-bolt and standard boost hub spacing (15x110 & 12x148), full rim and hub specifications available below.
Lightweight, durable, ratchet driven rear hub, with high-quality bearings and seals to give you the best combination of performance, durability and price.
Front Hub Details:Hub Spacing: Boost (15mm x 110mm)
Hole Count: 28 and 32
Weight front: 142g
Colours: Black, red, green, blue, orange, purple, grey
Material: 7075 T6 Aluminum
Spokes: J-Bend
Hub Dimensions: PCD-L: 52, Flange Dist-L: 28, PCD-R: 48, Flange Dist-R: 40
End Caps: Tool free installation (Standard and Torque Caps included with Front Hub)
Bearings: Enduro™ MR17287 (front)
Grease: Dumonde™ Pro-X Grease

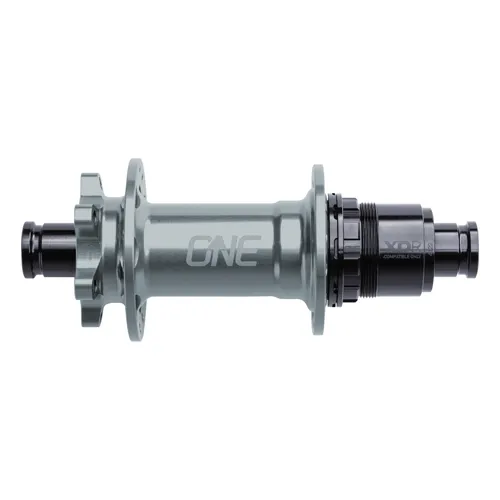

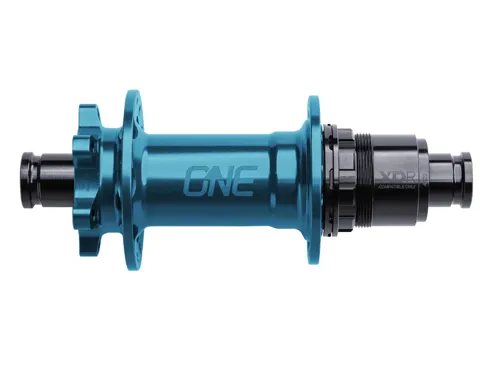

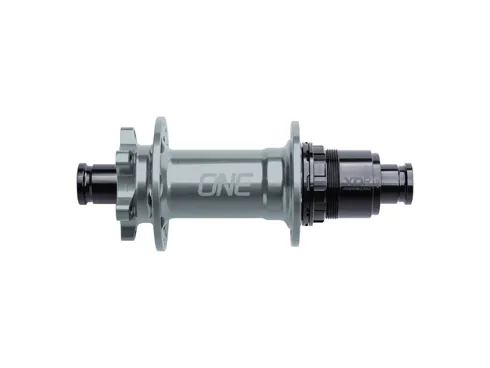

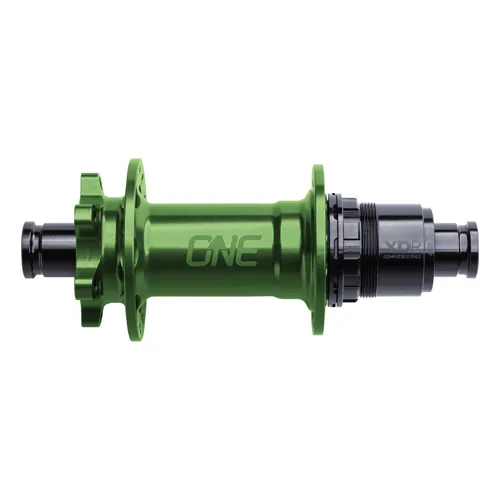

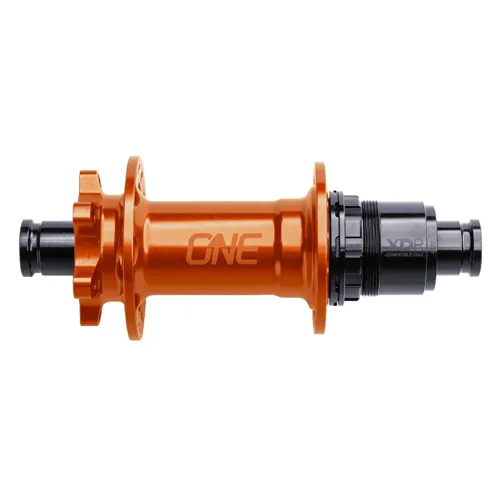

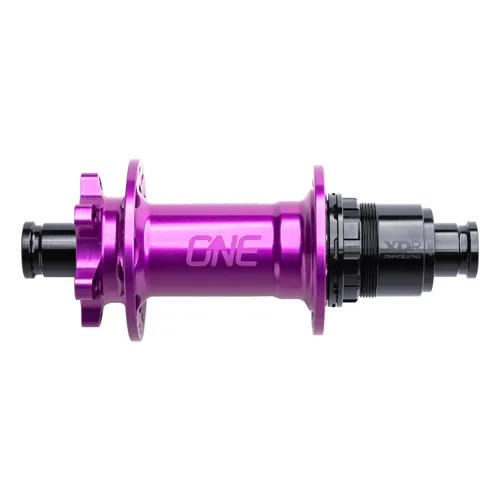

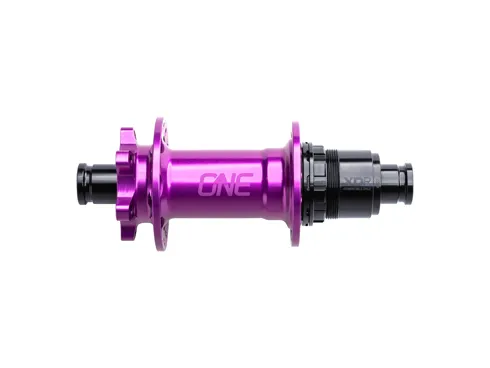

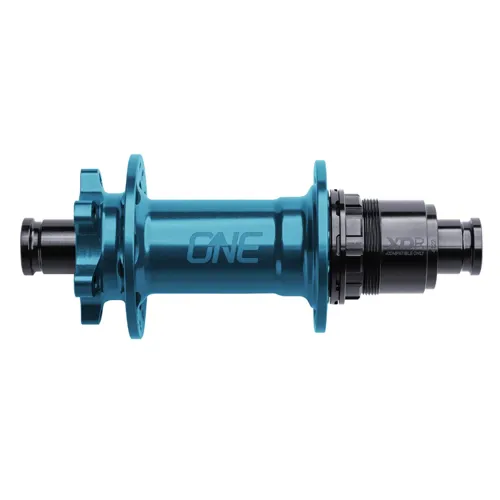

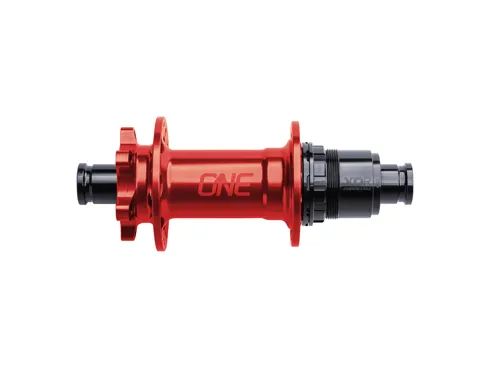

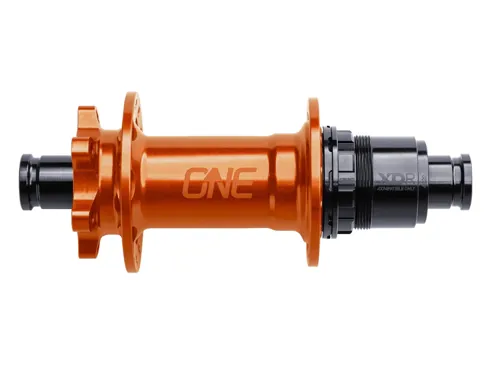

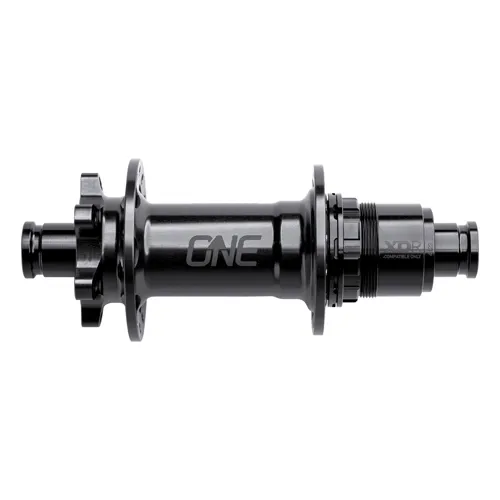

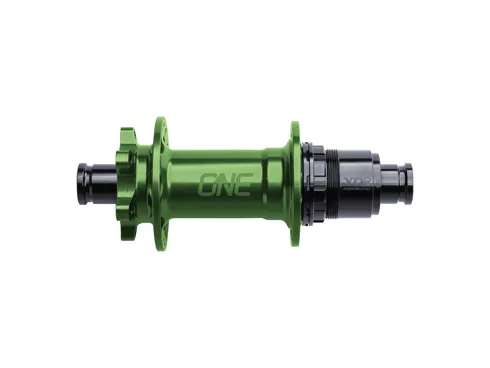

Rear Hub Details:Hub Spacing: Boost (12mm x 148mm)
Hole Count: 28 and 32
Engagement: 44 points, 8.2 degrees
Rear Hub Weight: 220g
Colours: Black, red, green, blue, orange, purple, grey
Material: 7075 T6 Aluminum

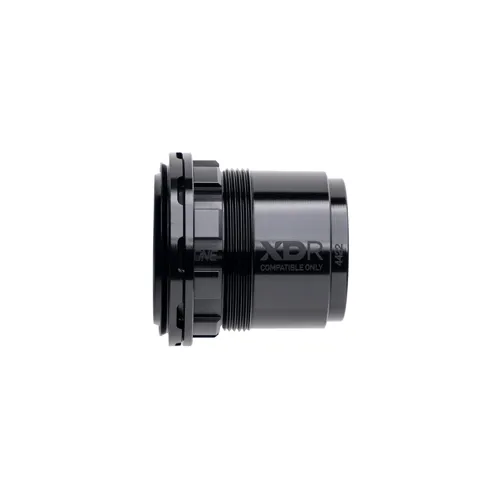

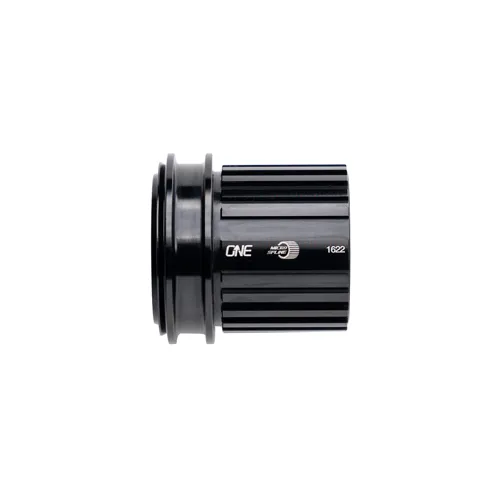

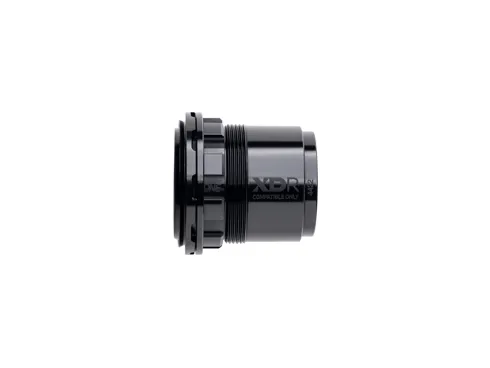

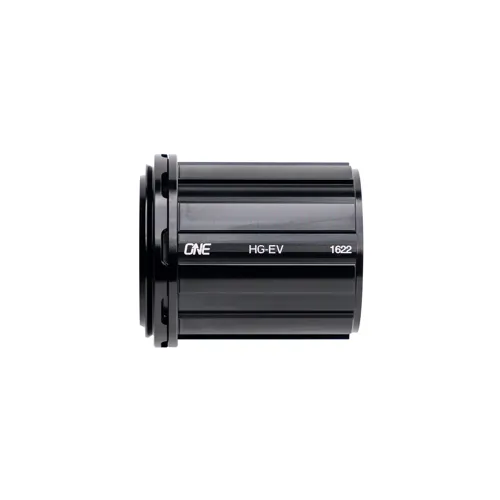

Freehub options: XDr, Microspline (MS), Hyperglide (HG)
Spokes: J-Bend
Rear Hub Dimensions: PCD-L: 52, Flange Dist-L: 38. PCD-R: 48, Flange Dist-R: 23
End Caps: Tool free installation
Bearings: Enduro™ 6902 (rear), Enduro™ 6802 (freehub)
Seal: Enduro™ Silicone Freewheel Seal
Grease: Dumonde™ Pro-X Grease (included with freehub)
Lightweight.Our simple design has fewer parts, this reduces weight and improves reliability. The fully machined 7075 aluminum body is super light and strong.
Durable Design.Premium Enduro™ ABEC 5 cartridge bearings are spaced as wide as possible to reduce wear, reduce side-loading and increase bearing life.
Good Engagement.We chose to develop a 44T ratchet to strike the best balance between performance and value with improved reliability.

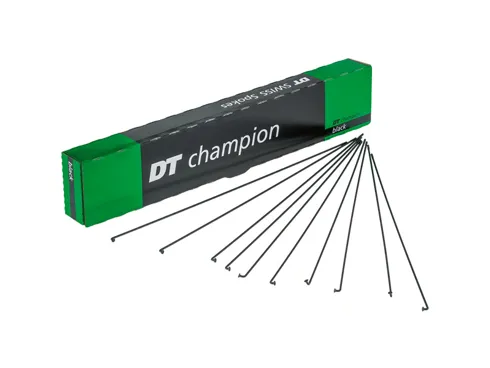

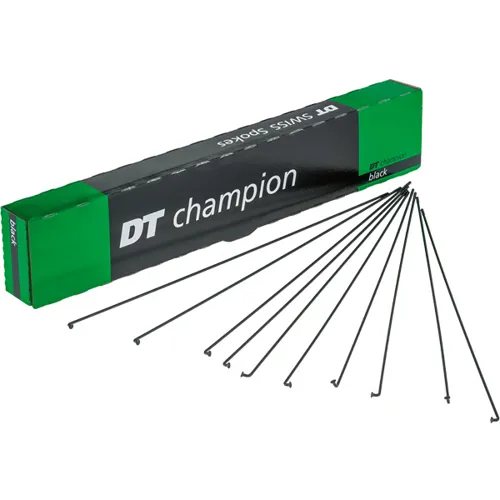

Wheels are built up using black DT Swiss Champion plain gauge J-Bend spokes and Squorx nipples which combines ease of use, lightweight and optimum performance. If you would like to request alternatives feel free to contact us prior to placing your order.
We aim to have wheels built within a week provided your selected options are in stock. Feel free to shoot us a message or give us a call to confirm availability and turnaround.
This is a custom built product and therefore non-returnable.
