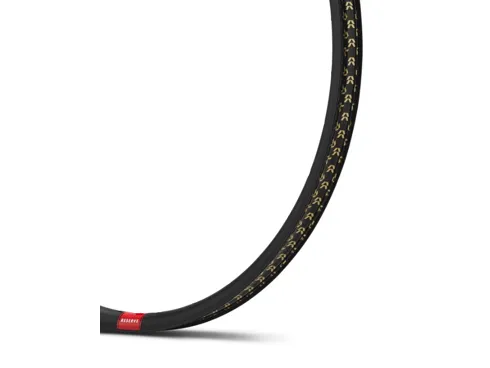

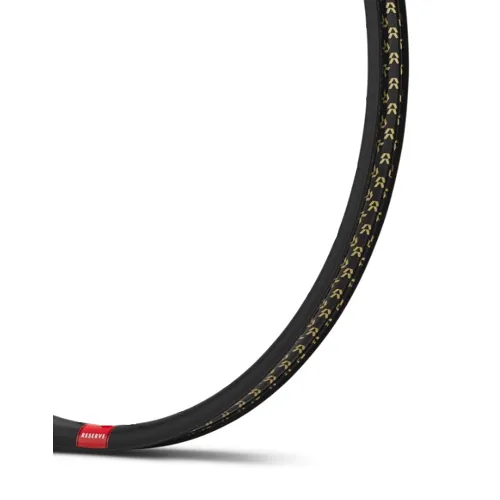

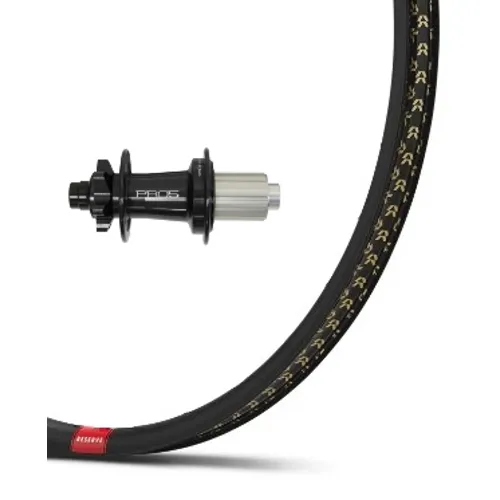

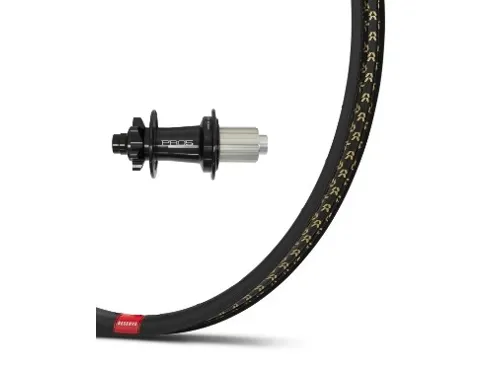

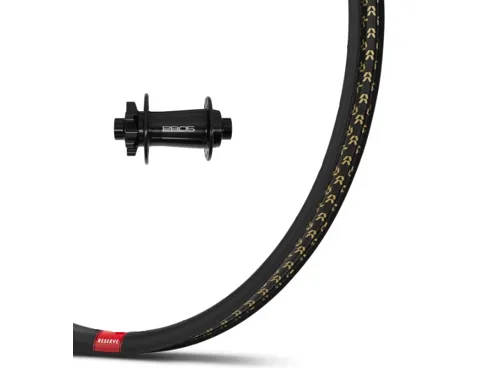

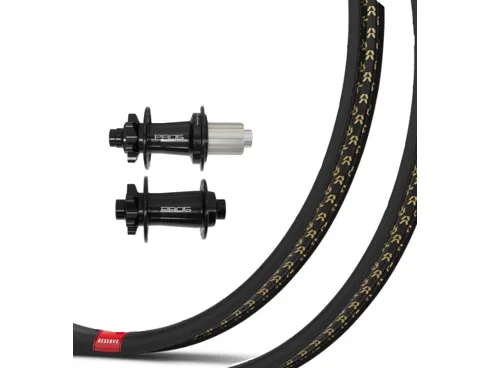

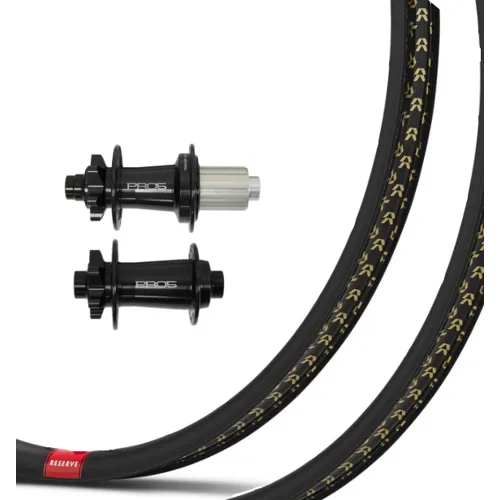

The Reserve 28|XC is the race-ready culmination of everything we’ve learned from years at the highest levels of competition. With no rider weight limit and lifetime warranty, the 28|XC features a wider and lower rim profile than our previous XC race rims, increasing strength and lateral rigidity while adding vertical compliance. The new rim shape also eases tubeless tire installation and improves tire bead retention at lower pressure. The Reserve 28|XC is sturdy and strong enough for a rowdy XC ride, but light and fast enough for a jaunt on the World Cup XC circuit.
Spoke ReinforcementsReserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.
Redesigned Rim BedThe 28|XC's redesigned rim bed eases tubeless installation, with a shaped rim bed utilizing offset spoke holes that allows the tire to easily push past the bead bump to seat tubeless tires.
Asymmetrical DesignAsymmetrical rims front and rear make for a stiffer, stronger and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes.
ERD - 597
Rim Material - Carbon
Designed For - XC Riding and racing
Inner Width - 28mm
Depth - 20mm
Recommended Tire Dimensions - 2.2 to 2.5
Spoke Count - 24
Single Rim Weight - 385g

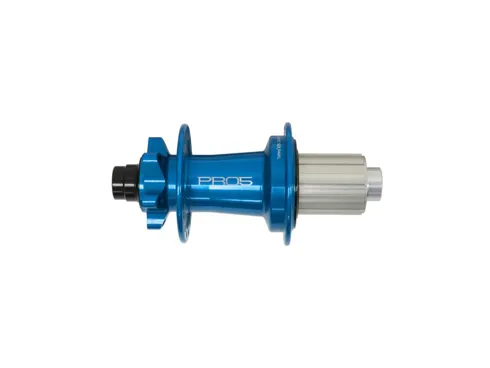

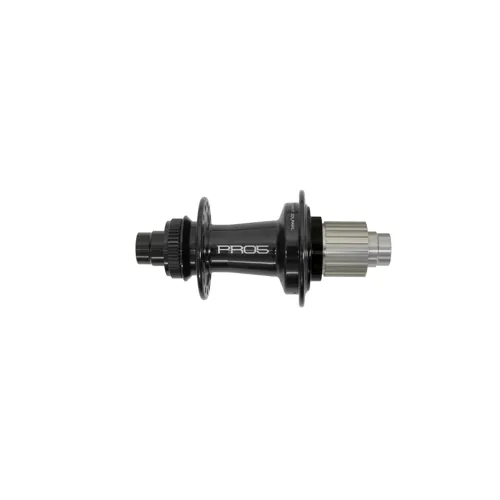

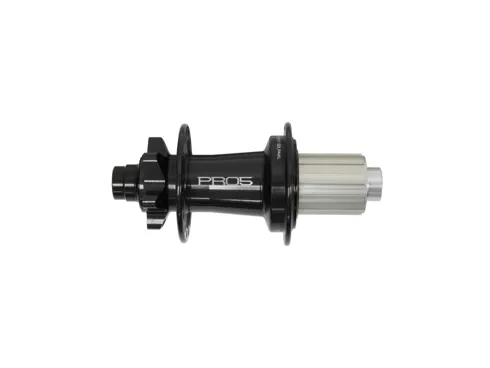

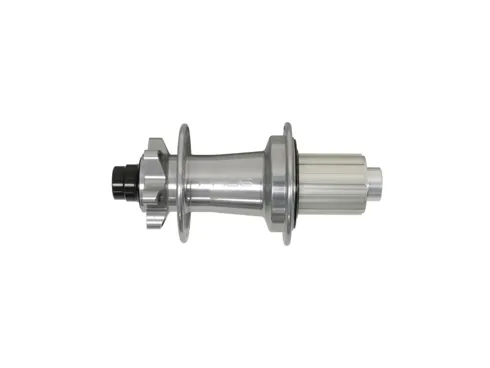

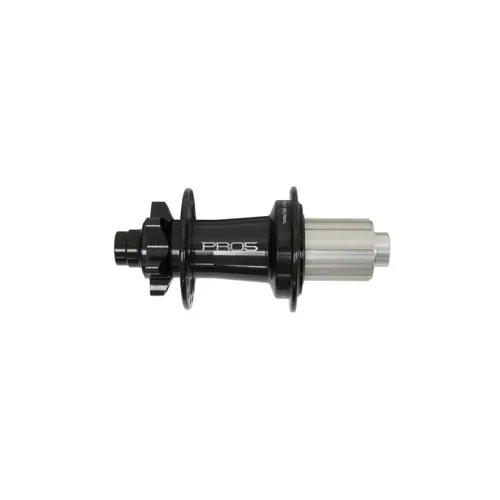

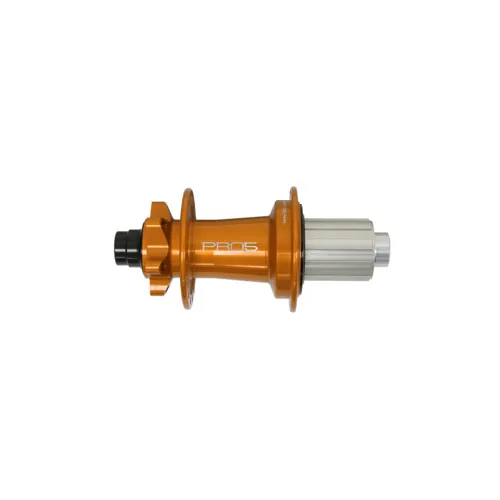

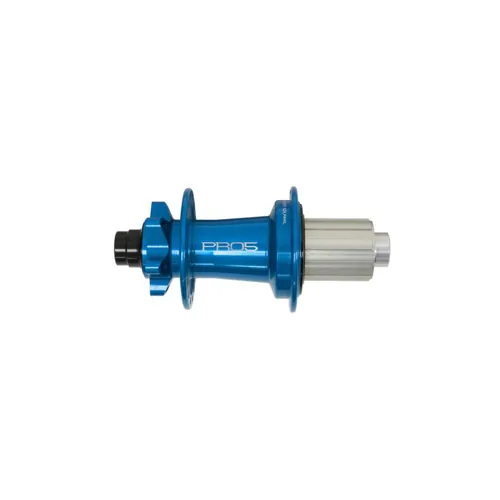

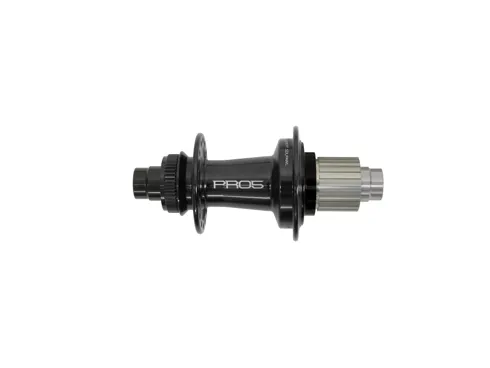

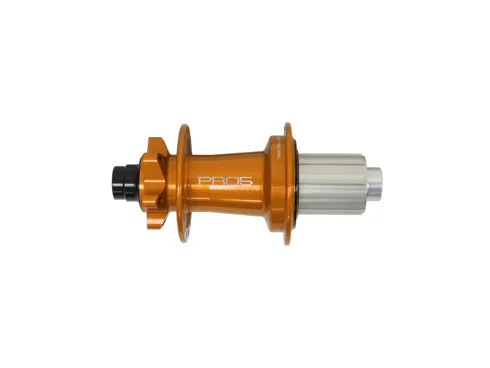

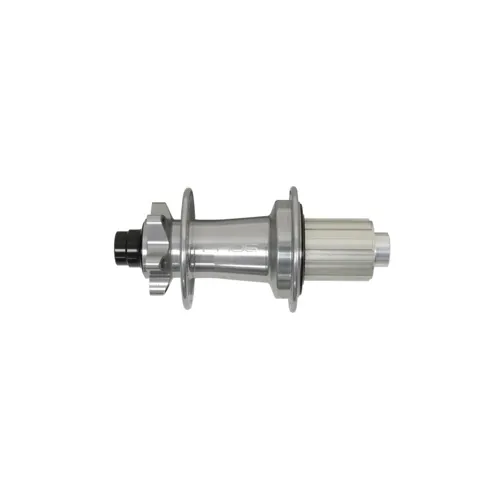

One of the key design objectives for the Pro 5 was the reduction of drag in the drive mechanism. This has real world riding benefits and was achieved by upgrading the sealing with a new zero drag labyrinth seal, and an improved ratchet and pawl system, with new springs. Both greatly reduce drag as well as increase durability and load capacity when compared with the Pro 4.
Another big update comes in an increase in the points of engagement (from 44 to 108) using an offset 6 pawl freehub design, where 3 pawls are engaged at any time. This achieves the right balance between speed of pick-up, load capacity, drag & durability, and in real-world terms gives a speedy feel on the trail whilst keeping crank movement to an acceptable level without compromising the free running of the hub or its reliability.
Externally the shell takes a new profile to add stiffness without adding weight whilst housing a new axle design enabling the use of bigger bearings in a better arrangement to fit the latest freehub standards whilst increasing load capacity.
As with every product made at Hope durability and longevity are key. Everything about the Pro 5 has been considered, and tested to work in the worst conditions possible from seals to bearings.... And eventually if something does wear out the Pro 5 is fully serviceable and rebuildable with simple tools, or if you need to change drivetrain standards one hub works with everything. So swapping freehubs is easily done, and changing end caps to suit different frame and fork axle standards future proofing your wheels.
Pro 5 Key Features:
- Improved sealing to stop dirt ingress and to reduce drag
- New Labyrinth seal has zero drag for incredible freewheeling performance
- New Pawls/Springs design to increase longevity, load capacity & a reduction of drag.

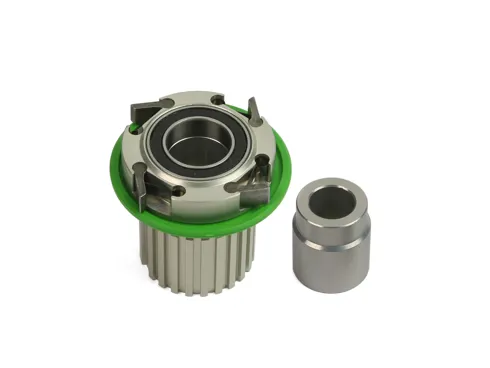

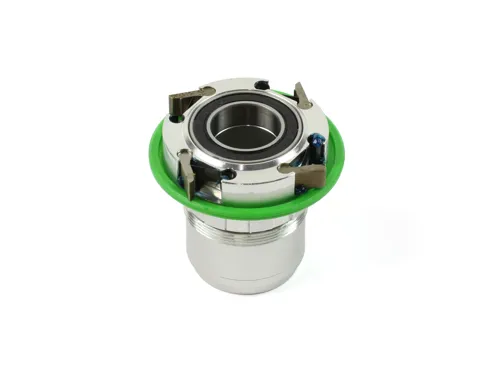

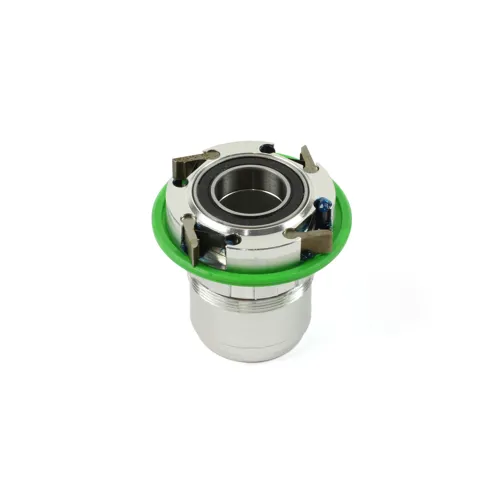

- Increased engagement from 44 to 108 with a new offset 6 pawl freehub design
- Wire cut pawls from high strength steel for maximum strength.
- New step down axle design for a stiffer more durable freehub
- New hub body profile for increased stiffness without adding weight
- Fully serviceable and rebuildable with simple tools

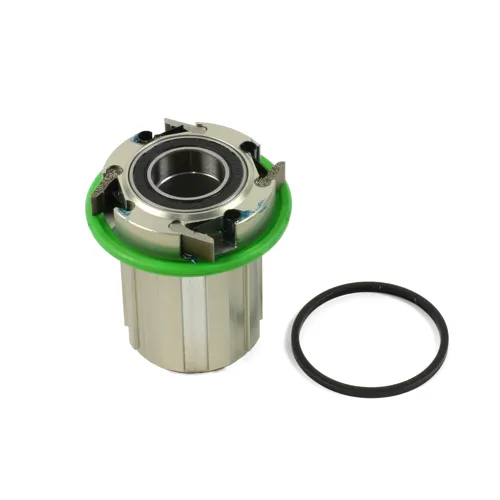

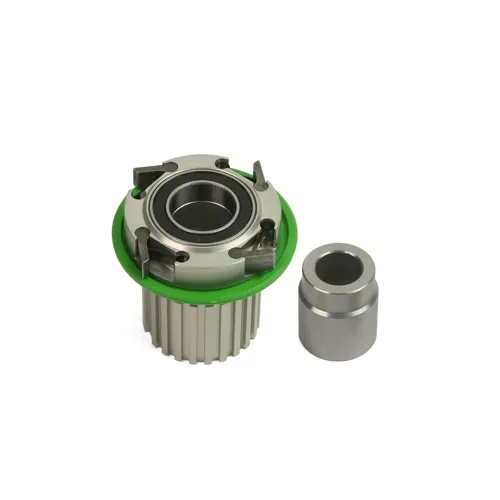

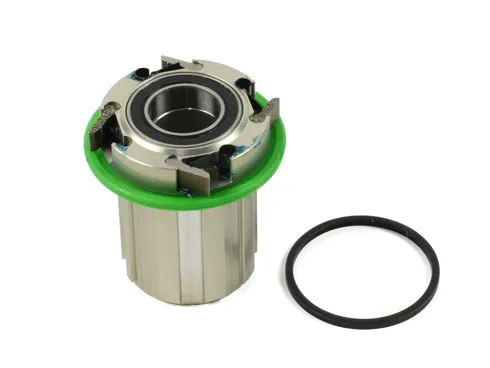

- Available with all modern freehub bodies

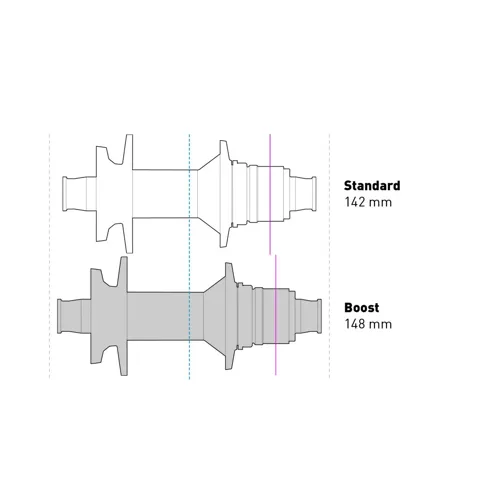

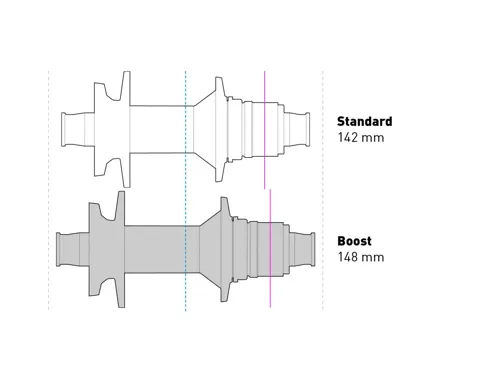

- End spacers can be easily swapped to suit different frame and axle standards

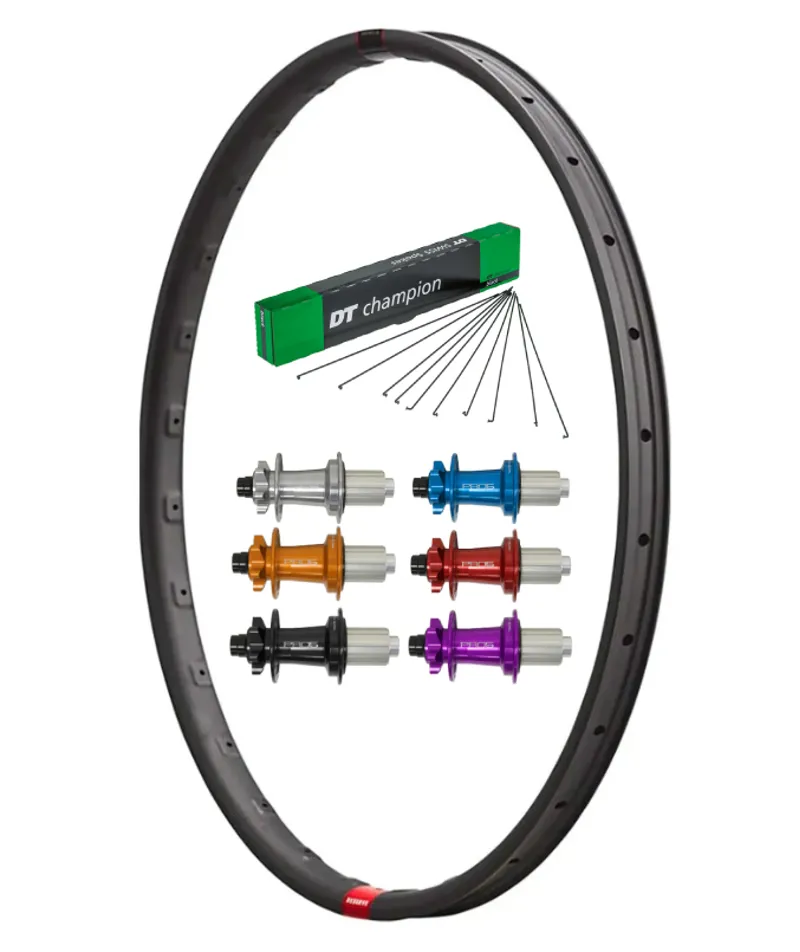

Wheels are built up using black plain gauge spokes and Squorx nipples which combines ease of use, lightweight and optimum performance. If you would like to request alternatives feel free to contact us prior to placing your order.
We aim to have wheels built within a week provided your selected options are in stock. Feel free to shoot us a message or give us a call to confirm availability and turnaround.
This is a custom built product and therefore non-returnable.
