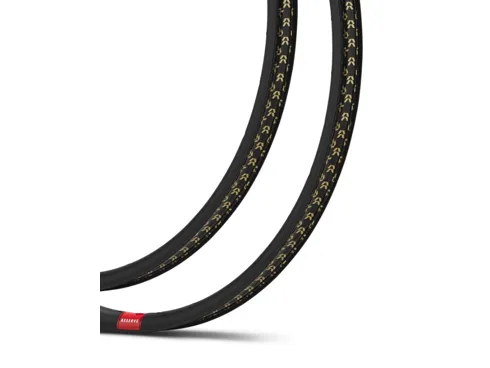

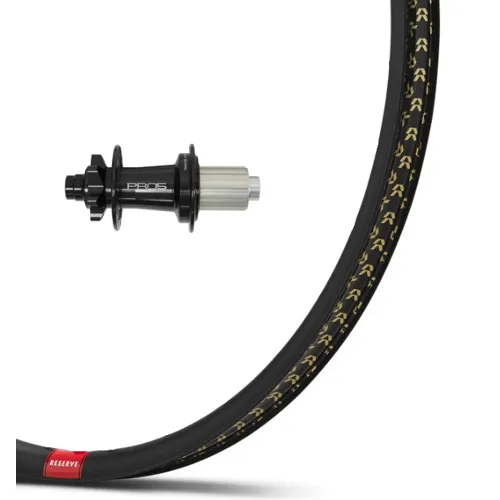

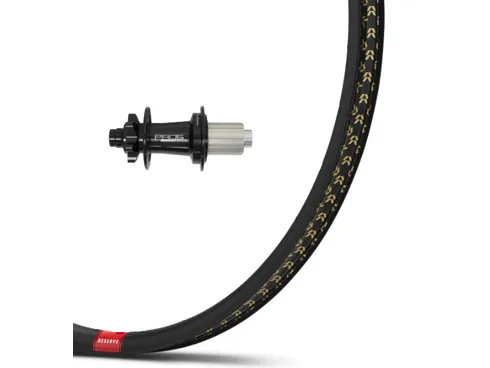

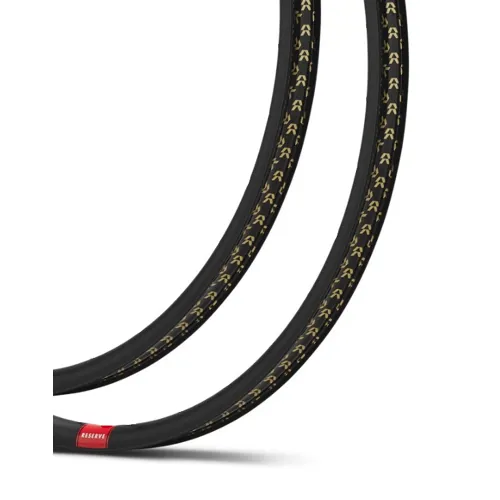

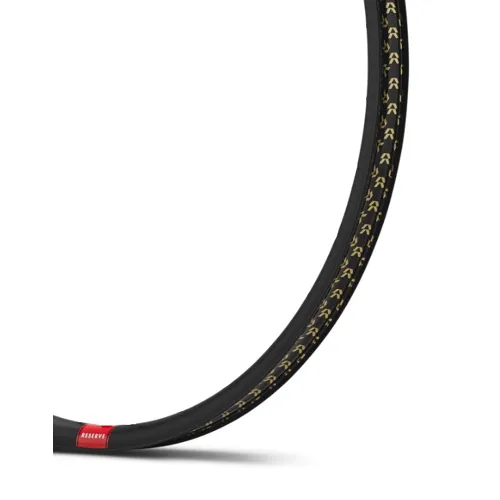

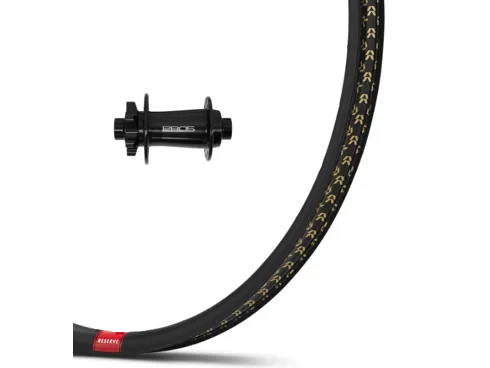

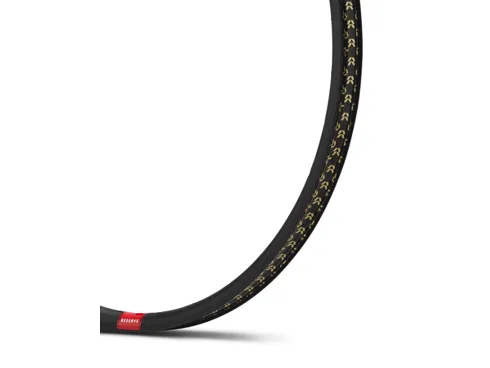

Reserve 30|HD
Modern trail bikes are designed to tackle anything that can be thrown at them. From cruising mellow singletrack to crushing boulder-strewn steeps, they deliver a do-everything performance that inspires the rider to go faster, more smoothly. The Reserve 30|HD is specially designed for trail riding and the abuse trail bikes dish out. They feature a 30mm width for use with 2.5 tires and a redesigned inner rim bed that takes the hassle out of seating new tires.
Redesigned Rim Bed
The 30|HD's redesigned rim bed eases tubeless installation, with a shaped rim bed utilizing offset spoke holes that allows the tire to easily push past the bead bump to seat tubeless tires.
Ride and Race Tested
The Reserve 30|HD is designed to be put through its paces and come out unscathed. So whether you’re sending it down your local steeps or hitting an EWS track, these are the trail bike wheels that keep delivering.
Asymmetrical Design
Asymmetrical rims, like those on the 30|HD, build stiffer, stronger and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes.
Single Rim Weight: 29 - 516g , 27.5 - 497g
ERD: 29 - 590F 27.5 - 560R
Designed For Trail, all mountain and enduro riding
Inner Width: 30mm
Depth: 20mm
Recommended Tire Dimensions: 2.3 to 2.5
Spoke Count: 28
Asymmetric Offset: 4mm

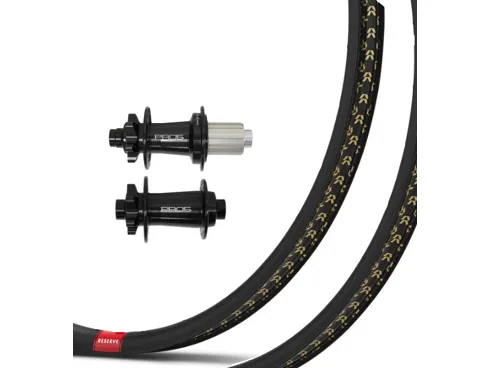

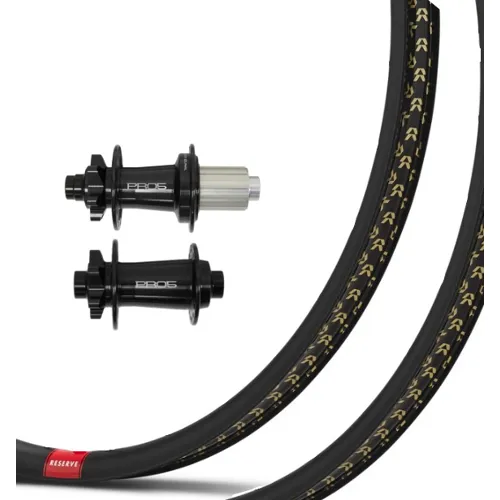

SAVE over 10% when you buy full custom built wheelsets! (Discount pre-applied, simply select 'pair of wheels' to take advantage of the discount. Full wheelset RRP £1798)

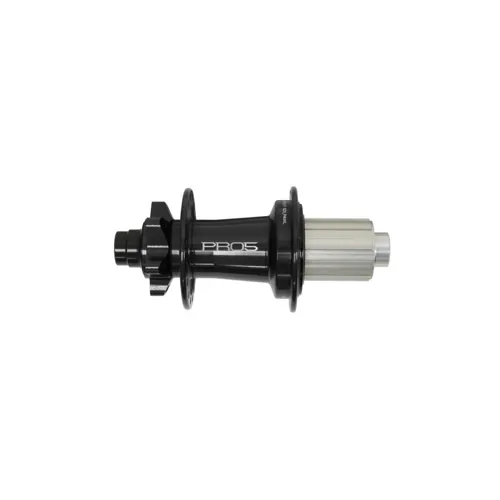

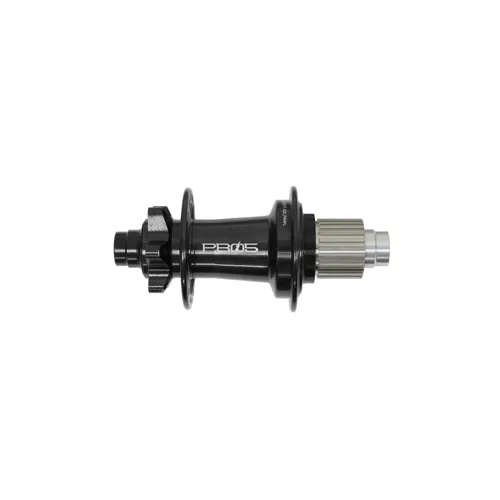

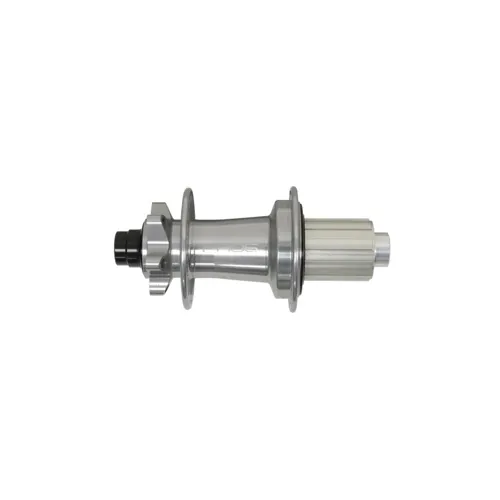

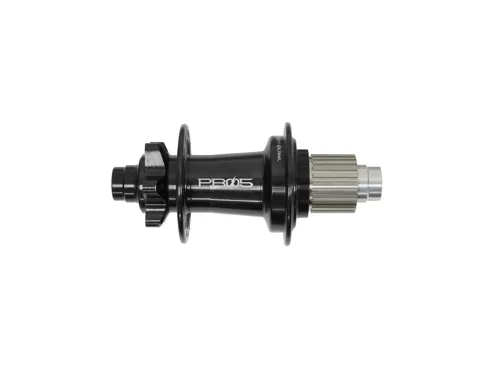

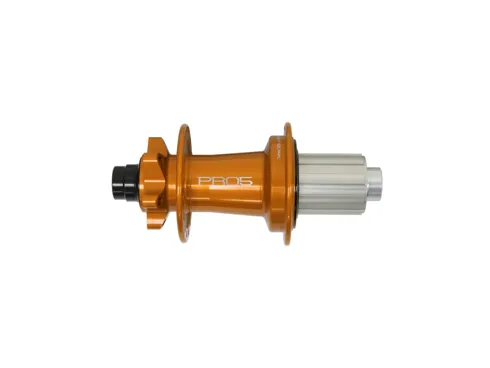

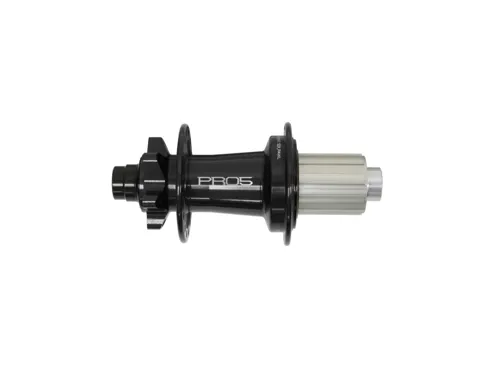

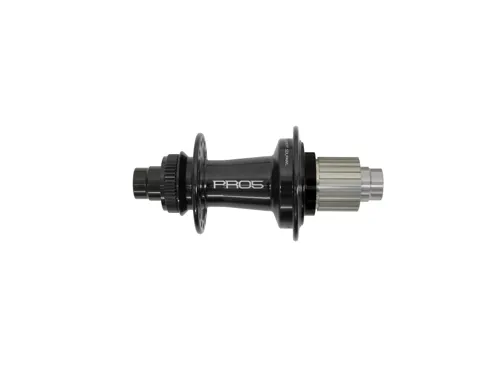

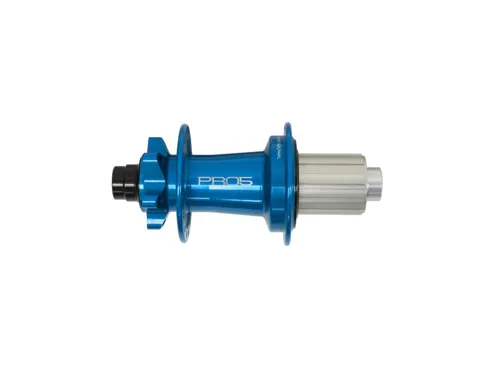

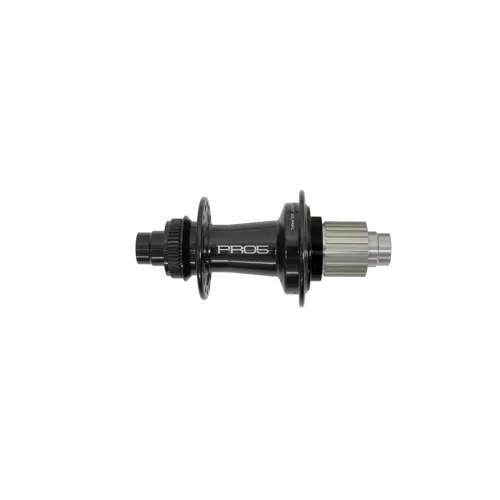

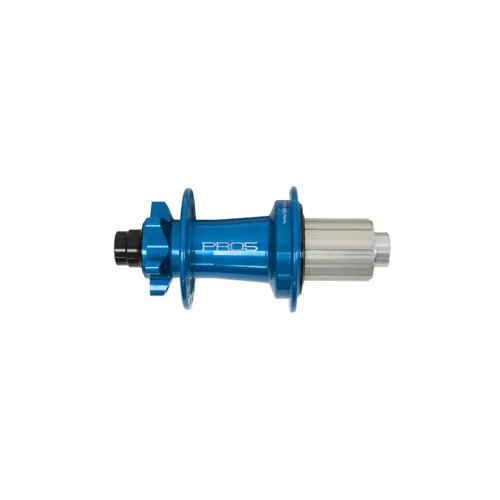

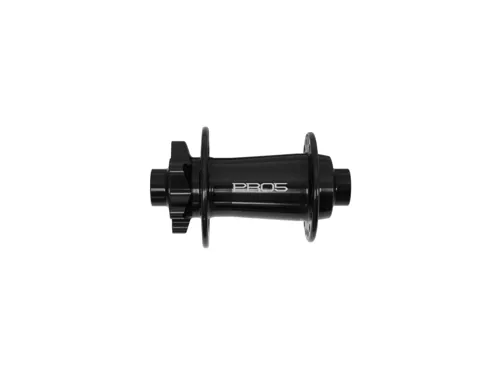

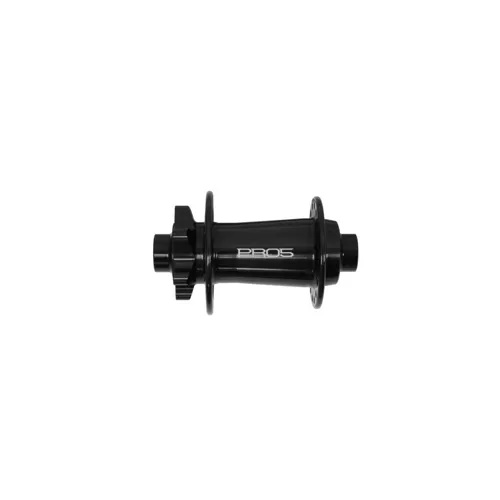

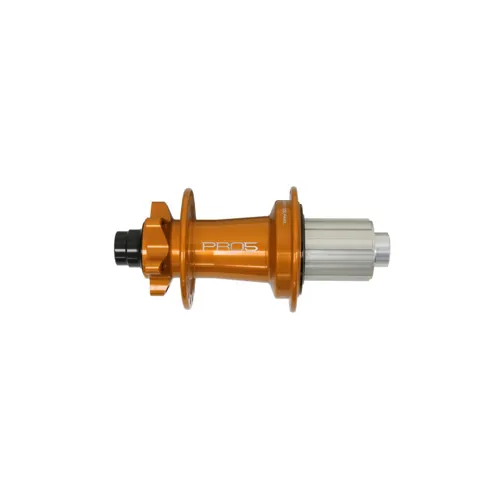

Hope Pro 5 HubsOne of the key design objectives for the Pro 5 was the reduction of drag in the drive mechanism. This has real world riding benefits and was achieved by upgrading the sealing with a new zero drag labyrinth seal, and an improved ratchet and pawl system, with new springs. Both greatly reduce drag as well as increase durability and load capacity when compared with the Pro 4.

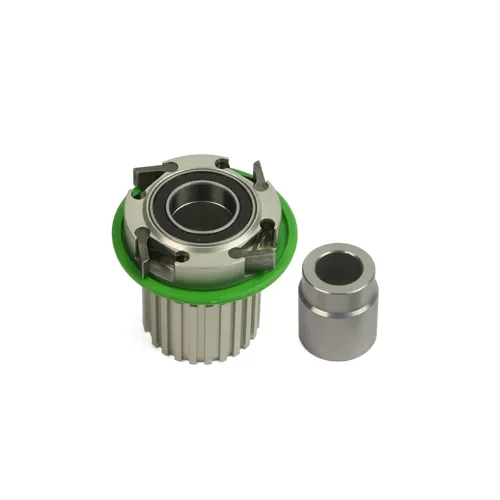

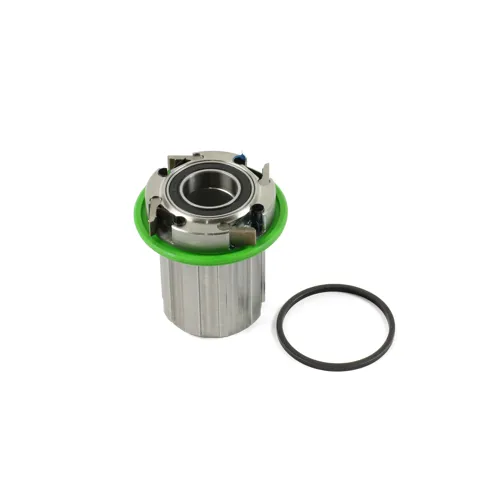

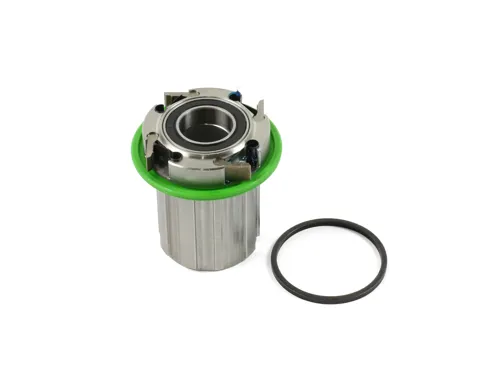

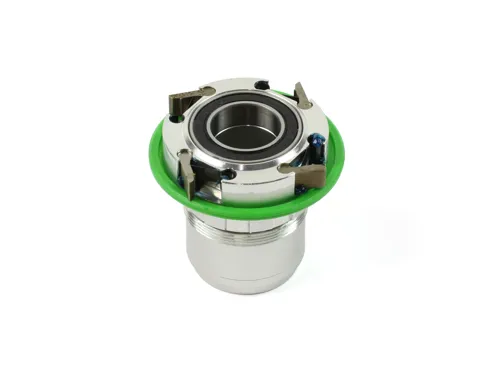

Another big update comes in an increase in the points of engagement (from 44 to 108) using an offset 6 pawl freehub design, where 3 pawls are engaged at any time. This achieves the right balance between speed of pick-up, load capacity, drag & durability, and in real-world terms gives a speedy feel on the trail whilst keeping crank movement to an acceptable level without compromising the free running of the hub or its reliability.
For the E-bike specific freehub only, all 6 pawls are engaged at any time for a stronger engagement.
Externally the shell takes a new profile to add stiffness without adding weight whilst housing a new axle design enabling the use of bigger bearings in a better arrangement to fit the latest freehub standards whilst increasing load capacity.
As with every product made at Hope durability and longevity are key. Everything about the Pro 5 has been considered, and tested to work in the worst conditions possible from seals to bearings.... And eventually if something does wear out the Pro 5 is fully serviceable and rebuildable with simple tools, or if you need to change drivetrain standards one hub works with everything. So swapping freehubs is easily done, and changing end caps to suit different frame and fork axle standards future proofing your wheels.
Pro 5 Key Features:Improved sealing to stop dirt ingress and to reduce drag
New Labyrinth seal has zero drag for incredible freewheeling performance
New Pawls/Springs design to increase longevity, load capacity & a reduction of drag.

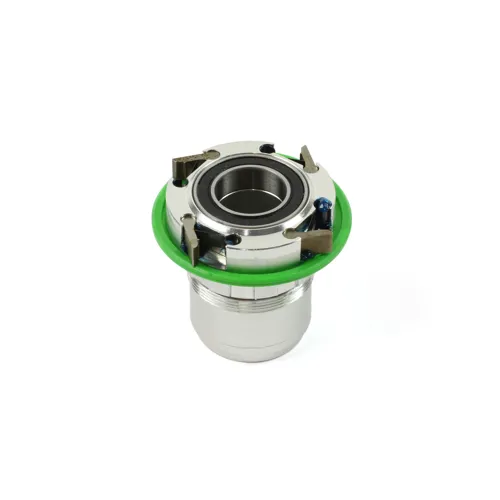

Increased engagement from 44 to 108 with a new offset 6 pawl freehub design
Wire cut pawls from high strength steel for maximum strength.
New step down axle design for a stiffer more durable freehub
New hub body profile for increased stiffness without adding weight
Fully serviceable and rebuildable with simple tools

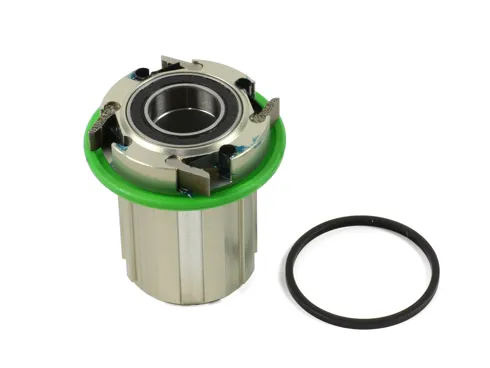

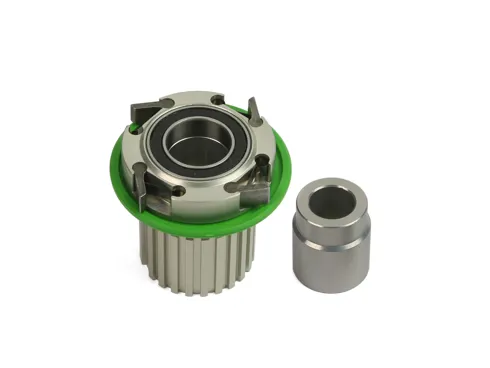

Available with all modern freehub bodies

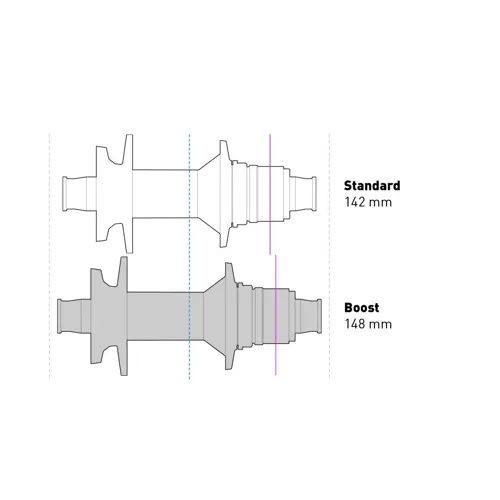

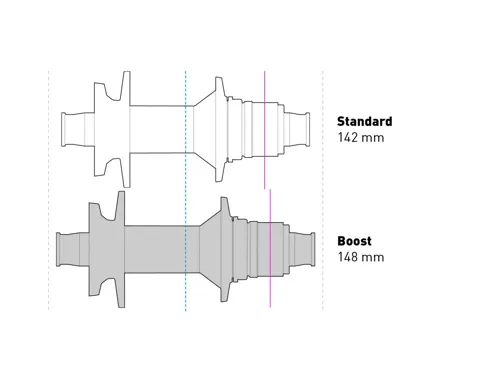

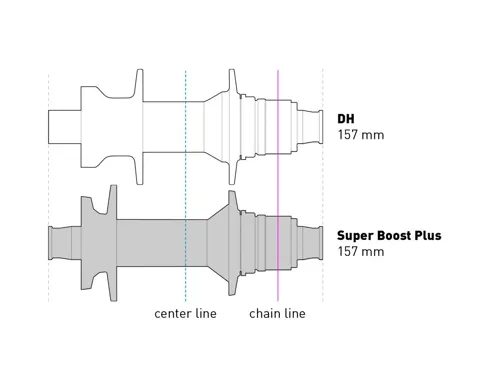

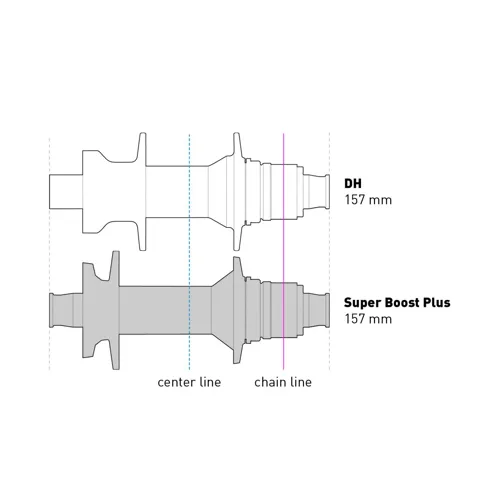

End spacers can be easily swapped to suit different frame and axle standards

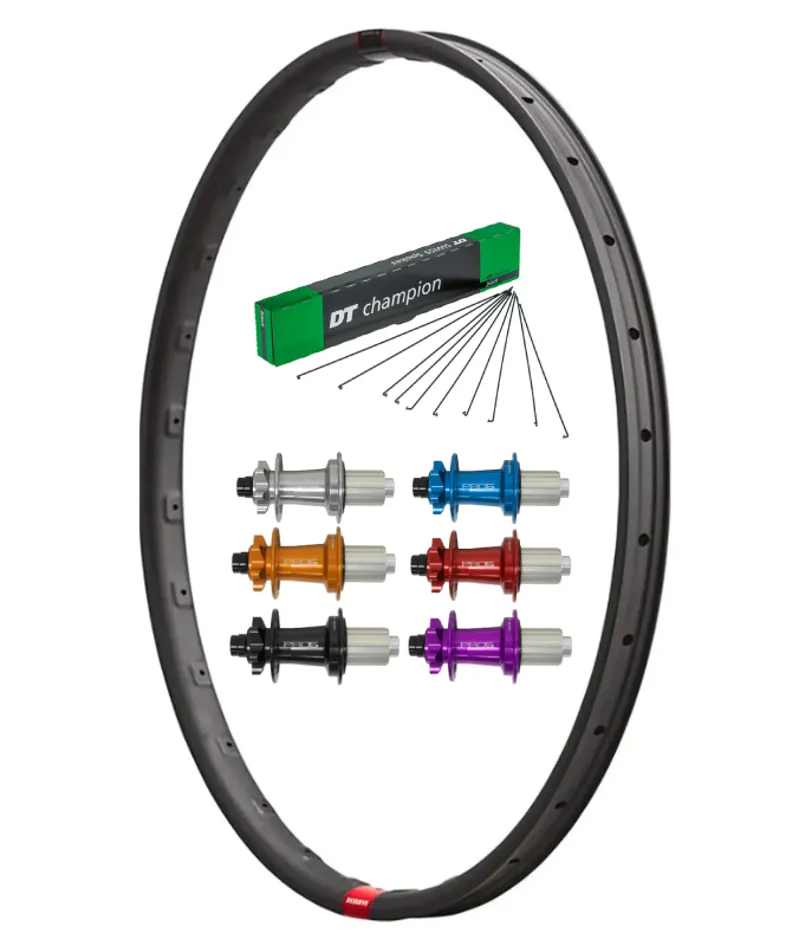

Wheels are built up using black plain gauge spokes and Squorx nipples which combines ease of use, lightweight and optimum performance. If you would like to request alternatives feel free to contact us prior to placing your order.
We aim to have wheels built within a week provided your selected options are in stock. Feel free to shoot us a message or give us a call to confirm availability and turnaround.
Bronze hubs are currently unavailable, please contact us for more information.This is a custom built product and therefore non-returnable.
