Frame
All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Rear Shock
Fox Float X, Performance Elite, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, 25xM8 Upper Mount, No Lower DU or Hardware
Fork
Fox 36 Performance Elite, 140mm travel, 29", 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fender
Headset
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Stem
Marin CNC, 35mm Length, 35mm Bar Bore
Handlebar
Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Grips
Marin Grizzly Lock On
Saddle
Marin Speed Concept
Seatpost
TranzX, YSI08 FL, 1x Remote,, 5mm Micro Adjust up to 25mm, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm

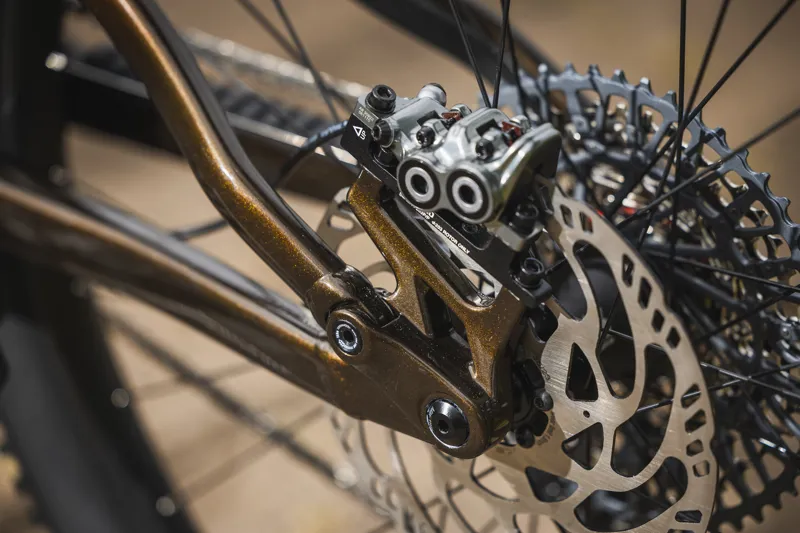

Brakes - Rear
Magura MT7 with HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor
Brakes - Front
Magura MT7 with HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor
Shifter
SRAM AXS Pod
Derailleur
SRAM GX AXS T-Type
Cassette
SRAM CS-XS-1275 T-Type, 10-52T
Chain
SRAM GX T-Type
Crank
e*thirteen e*spec Plus Carbon, 160mm Length, 34T
Rims
Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Welded Joint, Disc Specific, Tubeless Compatible
Front Hub
Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H
Rear Hub
Formula DC-711, 110x15, 6-Bolt, 32H
Tyres
Maxxis Minion DHF, 29x2.5" MAXXGRIP, Tubeless ready, EXO+
Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+

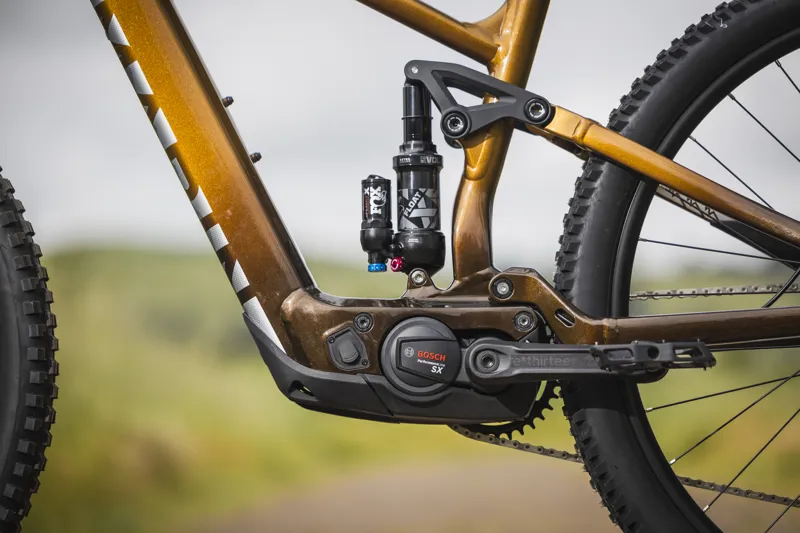

Motor
Bosch Performance Line SX, 600W, 55Nm
Battery
Bosch 400 Wh Internal
Display
Bosch BRC3100 Systems Controller

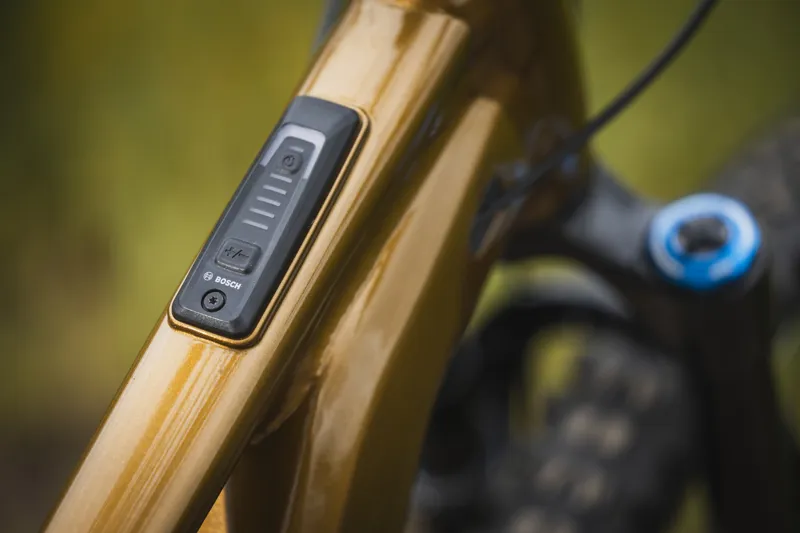

Switch
Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
EXTRAS: Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger
Specifications, pricing, and availability are subject to change without notice.
