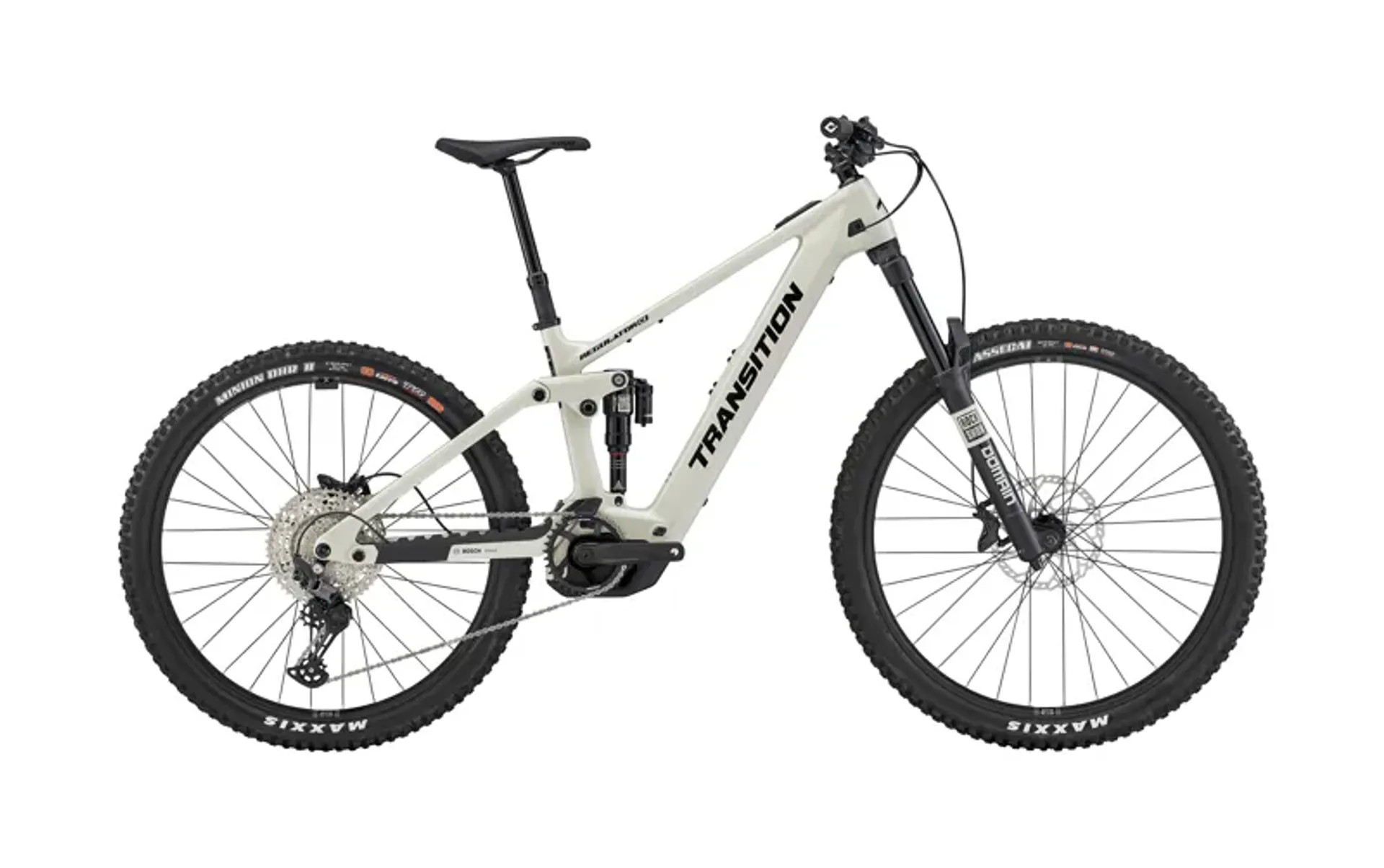

Transition Regulator CX Carbon MTB Deore Complete Ebike

Season:2025

Brand:Transition

Code:THWERD.BRC.XC.GER.52.BC.R

We are proud to introduce our all-new eMTB platform, the Regulator! The Regulator ir our all-mountain workhorse designed to provide a fun, nimble and responsive ride. No trail is too tame or too gnarly for the dedicated mixed wheel platform providing 150/160mm travel and geometry that promotes agility and playfulness. The Regulator will be the choice for riders looking for a chassis that excels everywhere with the added assistance of a Bosch drive unit. The Regulator will be available with the Bosch CX drive unit for those looking for higher power and longer range, or the Bosch SX drive unit for those who desire a lighter weight eMTB experience more similar to a regular mountain bike. Both bikes share similar form language, with just small differences between them, read on below to learn more!

Regulator CX

The Bosch Performance Line CX powered Regulator packs 85 Nm of torque with 600 W of peak power from the 600 Wh battery and optional 250 Wh range extender. The main battery is enclosed in a slim downtube and provides hours of fun, while still allowing users to add the range extender if even longer rides are desired. This combination provides the best range to weight ratio for those who value lighter ride characteristics, with the option to ride all day with rhe range extender. Giving you the best of both worlds with one of the most reliable, powerful and intuitive motor systems available on the market.

Features

  • Sizes SM-XL.
  • Carbon frame, mixed wheel only.
  • Size specific CS lengths (442 mm SM/MD, 448 mm LG/XL).
  • 160 mm fork travel, 150 mm rear travel (160 mm compatible with 65 mm stroke shock).
  • Bosch wireless 2 button Mini-Remote.

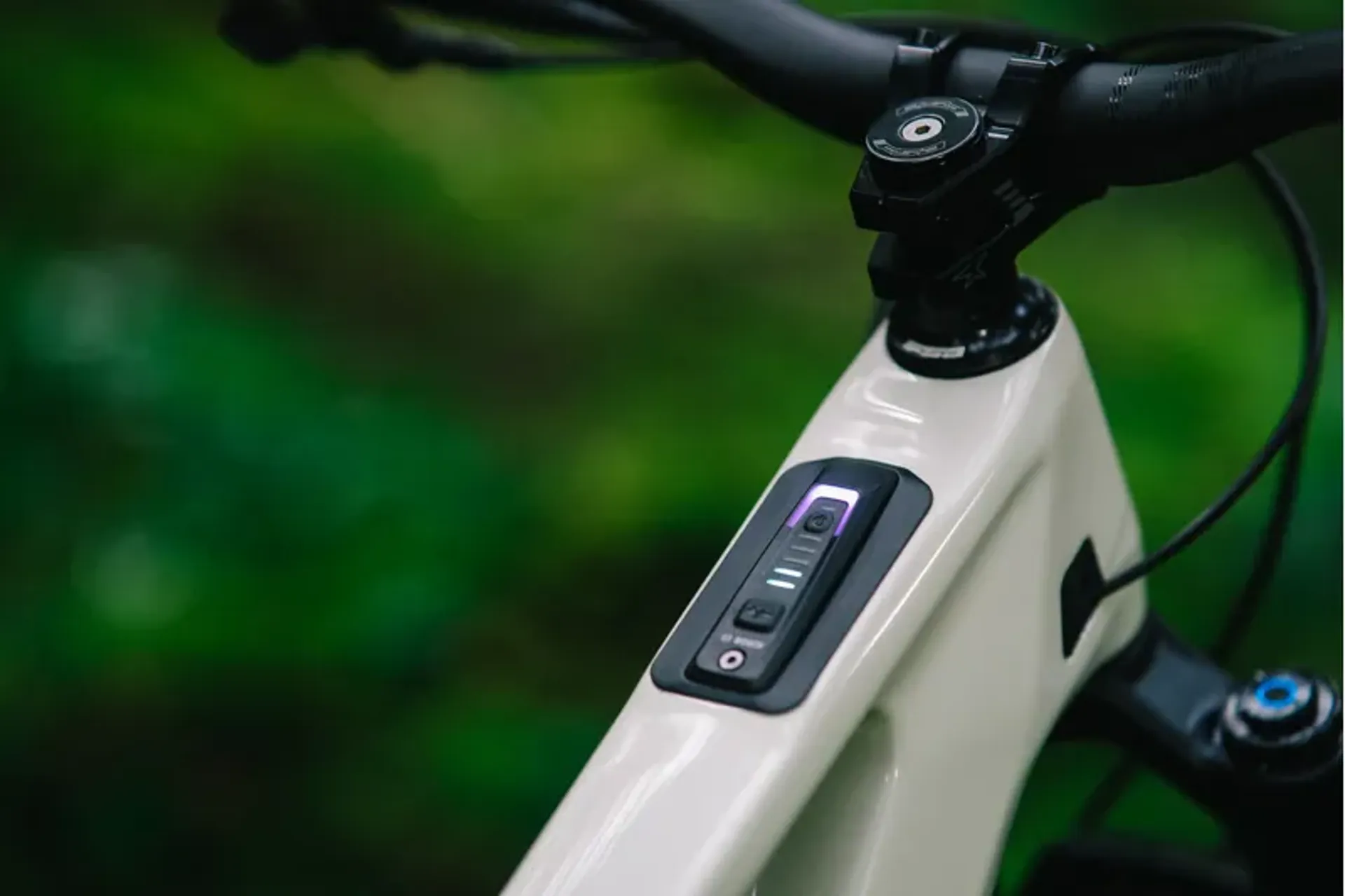

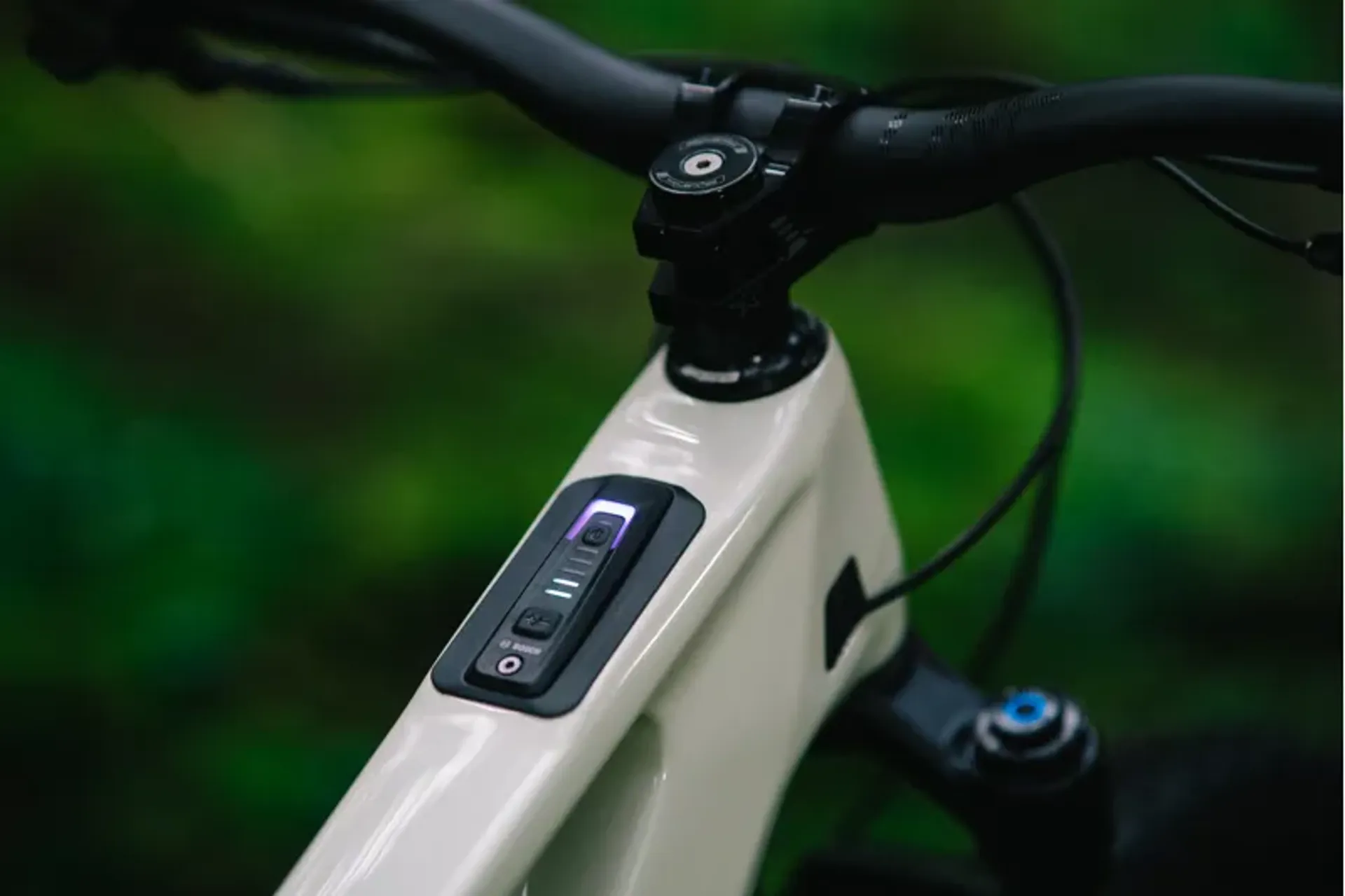

  • Top tube mounted system controller LED display.
  • New head tube cable routing ports: compatible with 0, 1 or 2 cables per side; ideal routing for either right/rear or left/rear brake assemblies.

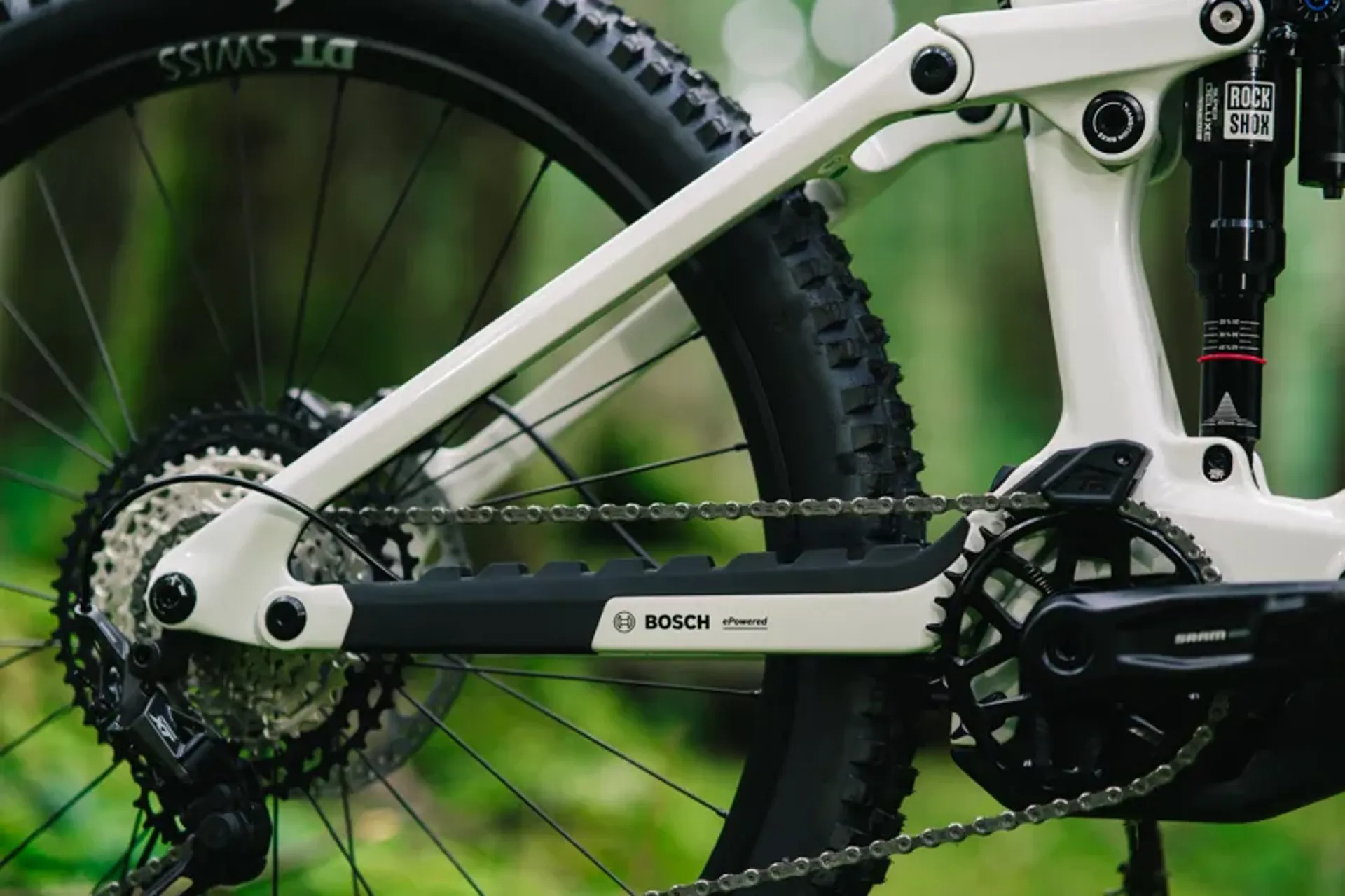

  • New chainstay protector design: includes separate cable routing grommet or closed plug for wireless RD.
  • custom charge port cover with integrated range extender cable management.
  • Bosch Performance Line CX drive unit with 85 Nm of torque.
  • Powertube 625 Wh battery: non-removable slide-in assembly for clean looks, minimum DT cross section, durability/robustness, lightest weight and least amount of noise..
  • Geo-adjust chip at lowe shock mount.
  • Ideal balance of weight, handling and power with flexible battery capacity: 625 Wh battery, 250 Wh range extender compatible with MD-XL sizes (sold separately).

Regulator CX Builds

Colour OptionsSalish Sea Blue, Glacier White
FrameRegulator CX Carbon 150mm
Wheel SizeMixed
Drive UnitBosch Performance Line CX
BatteryBosch Powertube 600 Wh
DisplayBosch System Controller
Assist SwitchBosch Wireless Mini-Remote
Rear ShockRockShox SuperDeluxe Base (205 x 60 mm)
ForkNew RockShox Domain Gold RC (160 mm)
HeadsetFSA No. 57E
StemRaceFace Aefect R (40 mm)
HandlebarRaceFace Chester 35
SM (789 x 20)
MD/LG/XL (780 x 35)
GripsODI Elite Flow Lock-On
SaddleSDG Bel Air V3
SeatpostSDG Tellis
SM (150 mm)
MD (170 mm)
LG (200 mm)
XL (230 mm)
BrakesShimano Deore M6120 4 Piston
RotorsShimano RT66 (203 mm)
ShifterShimano Deore M6100 iSpec EV
DerailleurShimano Deore M6100 SGS 12 sp
CassetteShimano Deore M6100 (10-51T)
ChainShimano Deore M6100
CrankSamox EC39 (150 mm)
ChainringE*Thirteen Helix Core Direct Mount 34T
ChainguideTransition Integrated Top Guide
RimsWTB ST i30
SpokesPillar Straight Gauge
HubsNovatech D791SB/D902SB
Front Tyre
Rear Tyre
IncludedBosch Charger,Tubeless Valves & Sealant
Technical Information

Regulator CX Builds

Colour OptionsSalish Sea Blue, Glacier White
FrameRegulator CX Carbon 150mm
Wheel SizeMixed
Drive UnitBosch Performance Line CX
BatteryBosch Powertube 600 Wh
DisplayBosch System Controller
Assist SwitchBosch Wireless Mini-Remote
Rear ShockRockShox SuperDeluxe Base (205 x 60 mm)
ForkNew RockShox Domain Gold RC (160 mm)
HeadsetFSA No. 57E
StemRaceFace Aefect R (40 mm)
HandlebarRaceFace Chester 35
SM (789 x 20)
MD/LG/XL (780 x 35)
GripsODI Elite Flow Lock-On
SaddleSDG Bel Air V3
SeatpostSDG Tellis
SM (150 mm)
MD (170 mm)
LG (200 mm)
XL (230 mm)
BrakesShimano Deore M6120 4 Piston
RotorsShimano RT66 (203 mm)
ShifterShimano Deore M6100 iSpec EV
DerailleurShimano Deore M6100 SGS 12 sp
CassetteShimano Deore M6100 (10-51T)
ChainShimano Deore M6100
CrankSamox EC39 (150 mm)
ChainringE*Thirteen Helix Core Direct Mount 34T
ChainguideTransition Integrated Top Guide
RimsWTB ST i30
SpokesPillar Straight Gauge
HubsNovatech D791SB/D902SB
Front Tyre
Rear Tyre
IncludedBosch Charger,Tubeless Valves & Sealant
Sizing Information

Geometry

SM
High / Low
MD
High / Low
LG
High / Low
XL
High / Low
AReach425 / 420 mm455 / 450 mm480 / 475 mm510 / 505 mm
BStack623 / 628 mm632 / 637 mm641 / 646 mm651 / 656 mmm
CEffective TT Length551 / 554 mm583 / 587 mm610 / 615 mm643 / 648 mm
DSeat Tube Length375 mm400 mm440 mm470 mm
EEffective ST Angle78.8° / 78.3°78.5° / 78.0°78.2° / 77.7°77.9° / 77.4°
Reference Seat Height600 mm660 mm720 mm780 mm
Actual ST Angle75.0° / 74.5°75.0° / 74.5°75.0 / 74.5 mm75.0° / 74.5°
ST Offset AT BB Height41 mm41 mm41 mm41 mm
FHead Tube length105 mm115 mm125 mm135 mm
GHead Tube Angle64.5° / 64.0°64.5 / 64.0 mm62.5° / 64.0°64.5° / 64.0°
HChainstay Length442 / 444 mm442 / 444 mm448 / 450 mm448 / 450 mm
IWheelbase1201 / 1203 mm1235 / 1237 mm1271 / 1273 mm1305 / 1307 mm
JBottom Bracket Drop (Front)25 / 20 mm25 / 20 mm25 / 20 mm25 / 20 mm
Bottom Bracket Drop (Rear)5 / 10 mm5 / 10 mm5 / 10 mm5 / 10 mm
KEstimated BB Height350 / 345 mm350 / 345 mm350 / 345 mm350 / 345 mm
